Buy Lubi MDH 27ASF - 1.1 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump Online

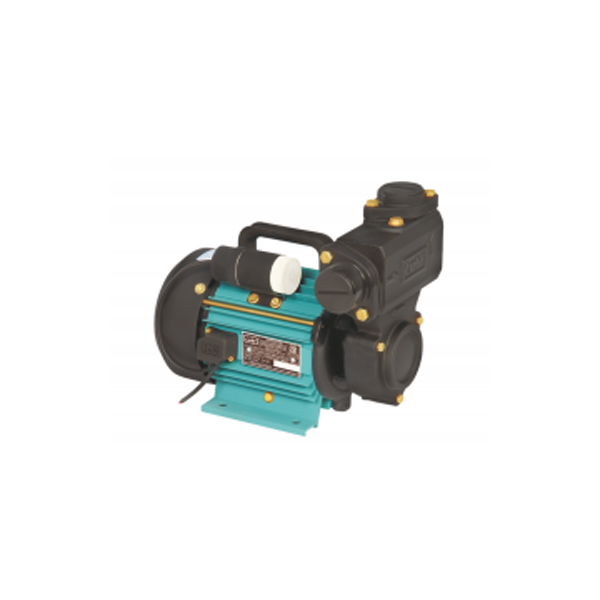

Lubi MDH 27ASF - 1.1 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi MDH 27ASF - 1.1 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Lubi MDH 27ASF - 1.1 HP, 50Hz MDH Series Single Stage Self Priming Monoblock Pump - Lubi self-priming monoblock pump is designed using modern and advanced technology. It ensures efficient functioning, and thus the pump requires less maintenance. The single-stage monoblock pump comes in a sturdy design, and so there are fewer chances of wear and tear. The pump comes in a compact size and is easy to install. Some of its typical applications include water supply for residential bungalows, garages, apartments, flats, hotels, laundries, clubs, clinics, etc. It is also used with small fountains, lawn sprinklers, gardens, construction sites, car washing, etc.

Product Attributes:

  • The MDH pumps are self priming, horizontal, single stage monoblock pumps.
  • Motor and pump are close coupled in a convenient and compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free, mechanical shaft seal.
  • The pumps have axial suction port and radial discharge port.

Operating Conditions:

  • Liquid temperature upto 90 degree C.
  • Ambient temperature upto 40 degree C.
  • Total suction lift up to 9 M.
  • Continous duty.

Motor:

  • 2 Pole induction motor, 50Hz (n=2900 RPM)
  • Single phase 230V +5% -15% with thermal protection.
  • Insulation Class B.
  • Protection IP 44.
  • Constructed in accordance with IEC 34.
  • Direction of Rotation- Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Area of Application:
For Garden, Bungalows, Sprinkler, Hotels
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 1.1 HP:
9 M: 2280 LPH, 12 M: 2160 LPH, 15 M: 1980 LPH, 21 M: 1620 LPH, 24 M: 1380 LPH, 27 M: 1140 LPH, 30 M: 900 LPH
Max RPM:
2900 RPM
Model:
MDH-27ASF
Number of Stages:
Single Stage
Phase:
Single
Pipe Length:
25x25 mm
Power:
1.1 HP, 0.82 kW
Series:
MDH Series
Voltage:
230 V
