Buy Lubi MDH 16H - 2 HP Single Phase B Class Insulation Centrifugal Monoblock Pumpset Online

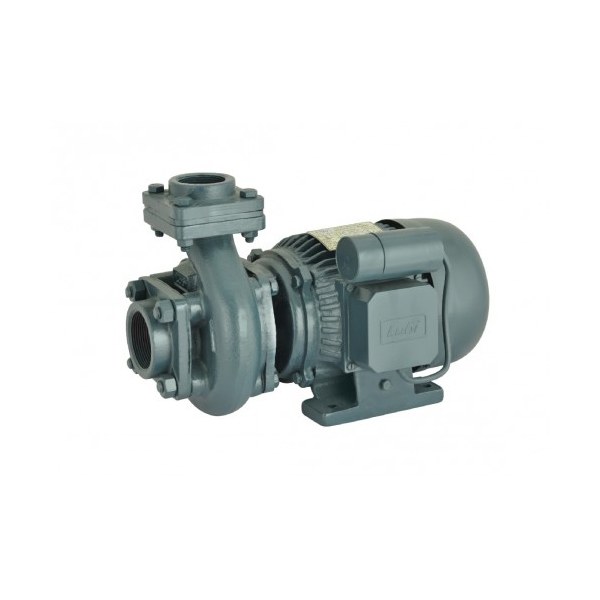

Lubi MDH 16H - 2 HP Single Phase B Class Insulation Centrifugal Monoblock Pumpset


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi MDH 16H - 2 HP Single Phase B Class Insulation Centrifugal Monoblock Pumpset

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Lubi Centrifugal Monoblock 2 HP Pumpset MDH-16H is of single phase with the head range of 10 to 20 meters. This Lubi monoblock pump two hp has a flow rate of 500 to 180 L.P.M. and Inlet/Outlet of 50x50 mm. It consists of a mechanical shaft seal for longer life and effective sealing against water leakage. The lubi electric motor 2 hp that the device possesses is pressure die-cast and uses electric grade aluminum. Also, this lubi centrifugal pump has a motor that is enclosed and fan-cooled. It is mostly applicable in residential, community water supply, construction sites, sprinklers, etc. Lubi motor 2 hp single phase and pumps are close-coupled in a convenient and compact design for quick installation in limited space. The pump has an axial suction port and a radial discharge port.

Product Specifications

GENERAL

Area of Application:
Residential bungalows, Community water supply, Construction site, Apartment, Small farms, Lawns and gardens, Car washing, Sprinklers, Hotels and Hospitals
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 2 HP:
10 M: 500 LPM, 12 M: 450 LPM, 14 M: 400 LPM, 16 M: 340 LPM, 18 M: 280 LPM, 20 M: 180 LPM
Insulation Class:
B Class Insulation
Max RPM:
2880 RPM
Model:
MDH-16H
Number of Phase:
Single
Power:
2 HP, 1.5 kW
Rated Voltage:
230 V (+- 10%)
Size:
50x50 mm
