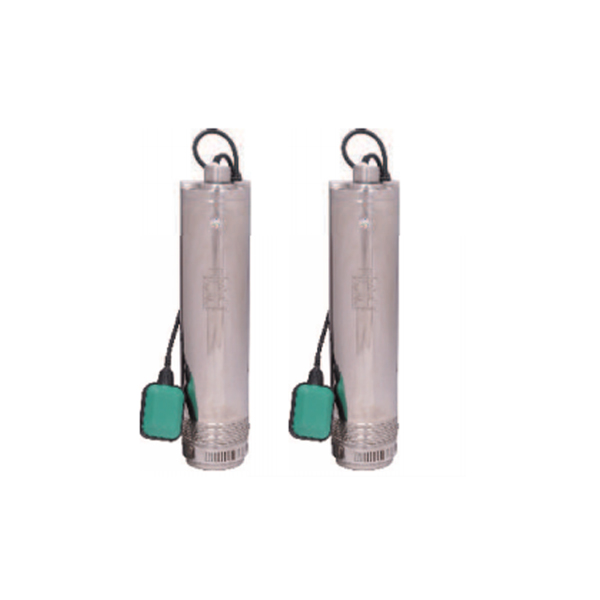

Lubi LSE 303 - 0.75 HP, 50Hz LSE Series Single Stage Deep Well Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LSE 303 - 0.75 HP, 50Hz LSE Series Single Stage Deep Well Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • The LSE pumps are vertical, Single stage, Submersible pumps.
  • Compact design for quick installation in limited space.
  • The pump is fitted with a maintenance free ball bearings and mechanical shaft seal.
  • The pumps are suitable for clean non aggressive fluids without solids or abrasive substances.
  • Easy and low cost installation.
  • Long service life.
  • Stable operation.
  • Low noise level.
  • Reliable and robust construction.
  • Built in thermal overload motor protection.
  • 2 pole induction motor placed in the top, inside the pump sleeve, and thus cooled by the pumped liquid.

Operating Conditions:

  • Flow range- Max 4.8 m3/h
  • Head range- Max 79 metre
  • Ambient temperature- 0 deg C to +50 deg C
  • Liquid temperature range- 0 deg C to +40 deg C
  • Installation depth- Max 20 metre below liquid level
  • Operating pressure- Max 3.5 bar
  • Del. Pipe Size- 32 mm
Product Specifications

GENERAL

Area of Application:
Water supply for homes and cottages, Garden application and Irrigation, Civil and Industrial application
Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 0.75 HP:
30 M: 10 LPM, 29 M: 20 LPM, 28 M: 30 LPM, 26 M: 40 LPM, 24 M: 50 LPM, 22 M: 60 LPM, 19 M: 70 LPM, 15 M: 80 LPM
Max RPM:
2900 RPM
Model:
LSE 303
Number of Stages:
Single Stage
Phase:
Single
Power:
0.75 HP, 0.55 kW
Series:
LSE Series
Voltage:
230 V
