Buy Lubi LLP 101035 - 10 HP, 50Hz LLP Series Three Phase Large Volume Water Pump Online

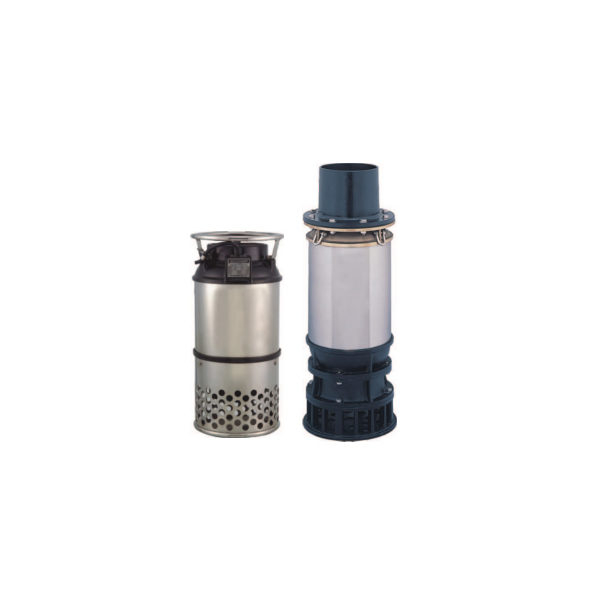

Lubi LLP 101035 - 10 HP, 50Hz LLP Series Three Phase Large Volume Water Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LLP 101035 - 10 HP, 50Hz LLP Series Three Phase Large Volume Water Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Flow rate upto 9000 l/min (540 m3/h)
  • Dynamic head upto 6m.
  • Large flow capacities achieved with almost no vibration or noise by use of propeller or mix flow design, giving easy operation and energy savings.
  • Robust construction and compact design with a dry motor, double mechanical seal and impeller flow guide vane for higher efficiency.
  • Simple operation and maintenance.
  • Direction of Rotation- Clockwise as seen from the motor rear end.

Area of Application:

  • Aquaculture water pumping and drainage for large volume water applications.
  • Water supply for landscape and water features.
  • Water extracting from rivers, lakes and reservoirs.
  • Flood control.
Product Specifications

GENERAL

Brand:
Lubi
Disc:
250 mm, 10 inch
Frequency:
50 Hz
Head vs Discharge at 10 HP:
5.8 M: 4000 LPM, 5.2 M: 4500 LPM, 4.6 M: 5000 LPM, 3.4 M: 6000 LPM, 2.5 M: 7000 LPM
Height:
1015 mm
Max RPM:
1450 RPM
Model:
LLP-101035
Phase:
Three
Power:
10 HP, 7.5 kW
Series:
LLP Series
Solid Passage:
22 mm
Start Method:
Direct
Weight:
164 Kg
Width:
380 mm
