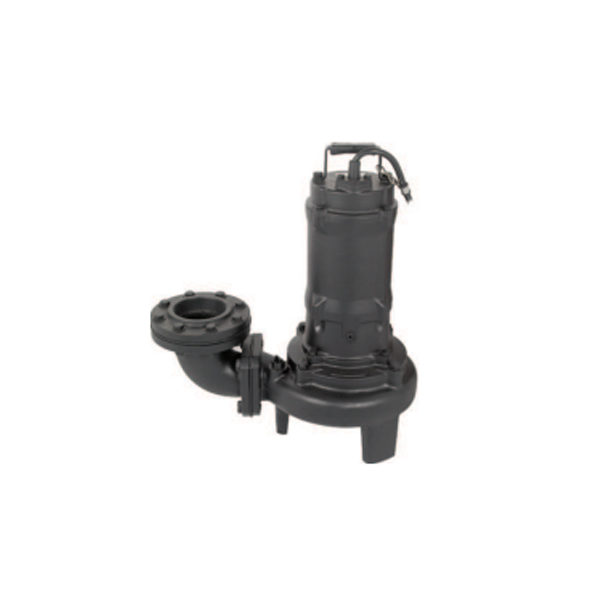

Lubi LHP 41035 - 10 HP, 50Hz LHP Series Three Phase Heavy Duty Sewage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Lubi

Lubi LHP 41035 - 10 HP, 50Hz LHP Series Three Phase Heavy Duty Sewage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • International standard design: VCT cable, thermal overload protector, silicon carbide mechanical seal, high grade cast iron, good quality and performance.
  • P/E Multiple impeller designs to handle solids laden sewage and fibrous substance.
  • An Oil seal ring has been installed under the oil chamber. This lip seal helps prevent the ingress of silt and salt into the lower seal chamber.
  • Superior abrasion resistant mechanical seal manufactured with silicon carbide to ensure the best seal effect.
  • Direction of Rotation- Clockwise as seen from the motor rear end.
  • Flow rate upto 8000 l/min (480 m3/h)
  • Dynamic head upto 40 m.

Area of Application:

  • Drainage of waste water from the liberation tank, purifying tank and sewage tank in water treatment plant.
  • Drainage of waste water containing fibrous additives from leather factory, dyeing factory and food processing factory.
  • Sewage management, accumulated water, septic tank, stock farm.
  • Pumping sewage from single and multi family dwellings.
  • Pumping sewage from hotels, restaurants, schools and public buildings.
Product Specifications

GENERAL

Brand:
Lubi
Dimensions:
701x404x850 mm
Disc:
100 mm, 4 inch
Frequency:
50 Hz
Head vs Discharge at 10 HP:
26.7 M: 200 LPM, 24.5 M: 400 LPM, 22.7 M: 600 LPM, 20.8 M: 800 LPM, 19.7 M: 900 LPM, 18.5 M: 1000 LPM, 13.6 M: 1500 LPM, 8 M: 2000 LPM
Impeller Type:
E
Max RPM:
1450 RPM
Model:
LHP-41035
Phase:
Three
Power:
10 HP, 7.5 kW
Series:
LHP Series
Solid Passage:
40 mm
Start Method:
Direct
Weight:
163 Kg
