Buy Lubi LHL 9B - 7.5 HP, 50 Hz Three Phase Horizontal Openwell Submersible Pumpset Online

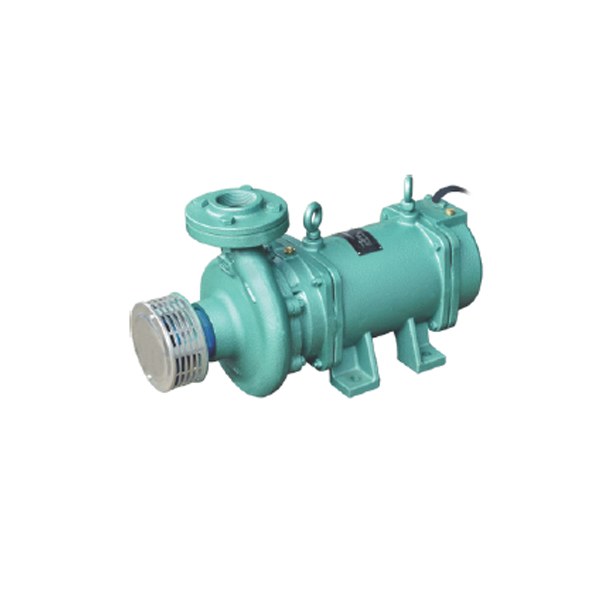

Lubi LHL 9B - 7.5 HP, 50 Hz Three Phase Horizontal Openwell Submersible Pumpset


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LHL 9B - 7.5 HP, 50 Hz Three Phase Horizontal Openwell Submersible Pumpset

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Suitable for agriculture, drinking water supply, fountains, buildings, farmhouses, Lubi LHL 9B - 7.5 HP, 50 Hz Three Phase Horizontal Openwell Submersible Pumpset enables the users to get a high water discharge rate and lower power bills. Well-designed for the huge voltage fluctuations, this three Phase horizontal open-well Submersible pump set is equipped with highly durable water-cooled and rewindable motors. The machine is built with Cast iron/ Stainless steel. Manufactured as per the international standards, the machine comes with balanced rotating components to ensure long bearing life and vibration free smooth operation.

Product Attributes:

-Low power consumption

-Properly placed thrust bearing offers many years of trouble-free operation

-Abrasion-corrosion free Wearing rings for optimum the pressure leakage of the liquid.

-Can be easily dismantled and repaired

Application:

The machine is suitable to extract water from open wells where there is wide fluctuation in water levels. It can be used in fountains, canals/rivers and high-rise buildings.

Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 7.5 HP:
36 M: 520 LPM, 40 M: 490 LPM, 42 M: 480 LPM, 44 M: 460 LPM, 48 M: 410 LPM, 52 M: 340 LPM, 56 M: 240 LPM
Max RPM:
2880 RPM
Model:
LHL-9B
Number of Phase:
Three
Power:
7.5 HP
Rated Voltage:
415 V (-15% & +6 %)
Series:
LHL
Size:
65x50 mm
