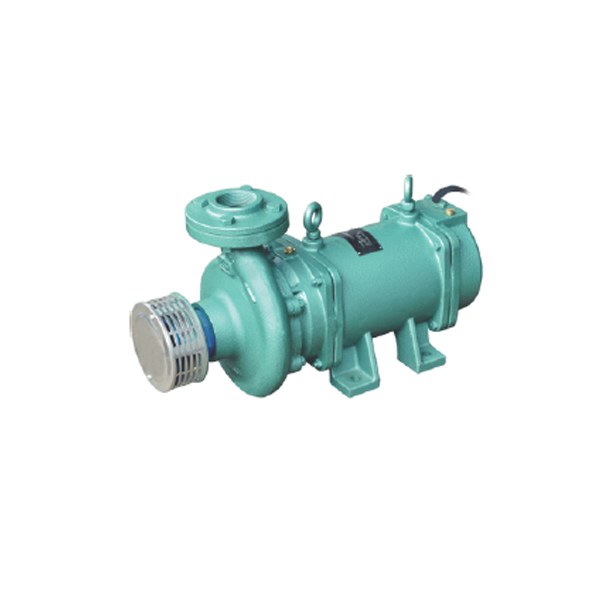

Lubi LHL 4A - 5 HP, 50 Hz Three Phase Horizontal Openwell Submersible Pumpset


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LHL 4A - 5 HP, 50 Hz Three Phase Horizontal Openwell Submersible Pumpset

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Pumpset are designed to withstand voltage drops to 320 volts.
  • It has well designed sleeve and thrust of adequate capacity for longer life.
  • High operating efficiencies of pumpset result into high water discharge rate and lower power bills.
  • All components are precisely machined on modern precision machine tools to give you years of reliable operation.
  • Stator and rotor of the monoset are vacuum impregnated with synthetic varnish and epoxy coated for corrosion resistance.
  • All rotating components are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • Motor Body: Cast iron/ Stainless steel.
  • Stator: Vacuum impregnated and epoxy coated for corrosion resistance. Thick end laminations are provided to protect motor windings.
  • Rotor: Vacuum impregnated, shot blasted and coated with poly urethene color for corrosion resistance and dynamically balanced for vibration free smooth operation.
  • Winding: PVC/ Polyester insulated, water cooled.
  • Journal bearings: Leaded bronze and stainless steel, water lubricated, having high load bearing capacity.
  • Thrust bearings: Carbon vs stainless steel and water lubricated to withstand high axial thrust loads.
  • Casing: High grade Cast iron.
  • Wear Rings: High quality abrasion resistance Bronze.
  • Shaft: Stainless steel of adequate diameter to ensure rigidity and ground to close tolerances.
  • Cable Sealing Arrangement: Designed so that no borewell water with sand can enter the motor.

Area of Application:

  • Irrigation from open wells especially where there is wide fluctuation in water levels.
  • Community water supply from open wells.
  • Fountains.
  • Canals/ Rivers belt irrigation.
  • Water supply for high rise building.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 5 HP:
28 M: 480 LPM, 32 M: 430 LPM, 36 M: 340 LPM, 40 M: 250 LPM, 42 M: 200 LPM, 44 M: 140 LPM
Max RPM:
2880 RPM
Model:
LHL-4A
Number of Phase:
Three
Power:
5 HP
Rated Voltage:
415 V (-15% & +6 %)
Series:
LHL
Size:
50x38 mm
