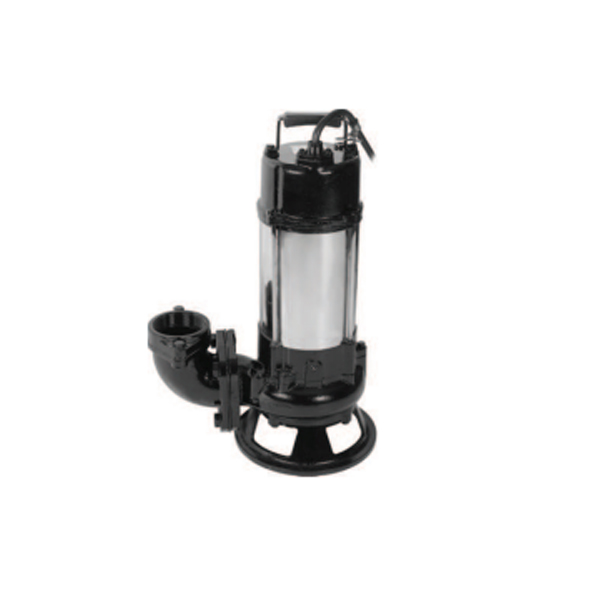

Lubi LFP 3215UF - 2HP, 50Hz LFP Series Single Phase Capacitor Sewage Pump with Float Switch


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Lubi

Lubi LFP 3215UF - 2HP, 50Hz LFP Series Single Phase Capacitor Sewage Pump with Float Switch

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

A precision manufactured motor is achieved utilizing a laminated sheet steel production process combined with the highest standard of quality control. The stator and wiring is impregnated with varnish and then heat dried in an industrial oven. This ensures a 100% quality manufactured motor with stable characteristics and a high efficiency.

Features:

  • Direction of rotation- Clockwise as seen from the motor rear end.
  • Protection IP 68
  • Flow rate upto 1000 l/min (60 m3/h)
  • Dynamic head upto 20 m.
  • Thermal overload Protector- Equipped with automatic reset motor protector, prevents motor from burning due to high temperature, phase failure, voltage drop and lock impeller.
  • Cable Base- Epoxy resin seal cable base prevent water intrusion into motor through the cable wire.
  • U Type Impeller- This impeller can generate rapid rotating vortex to handle fluid mixed with long fiber, the majority of abrasive solids do not touch impeller to minimize impeller wear.

Area of Applications:

  • Drainage of sewage from the building basements, hotel industry, waste water from factories.
  • Drainage of sewage from industrial process industries.
  • Emptying of septic tanks, cesspits and sewage pump stations.
  • Pumping surface and drainage water from garages and sprinkler systems.
Product Specifications

GENERAL

Brand:
Lubi
Dimensions:
408x258x610 mm
Disc:
80 mm, 3 inch
Frequency:
50 Hz
Head vs Discharge at 2 HP:
10.9 M: 50 LPH, 10.5 M: 100 LPH, 9.5 M: 200 LPH, 8.5 M: 300 LPH, 7.3 M: 400 LPH, 3.2 M: 600 LPH
Impeller Type:
U
Max RPM:
2900 RPM
Model:
LFP-3215UF
Phase:
Single
Power:
2 HP, 1.50 kW
Series:
LFP Series
Solid Passage:
15 mm
Start Method:
Capacitor
Voltage:
240 V, +5 to 15%
Weight:
44 Kg
