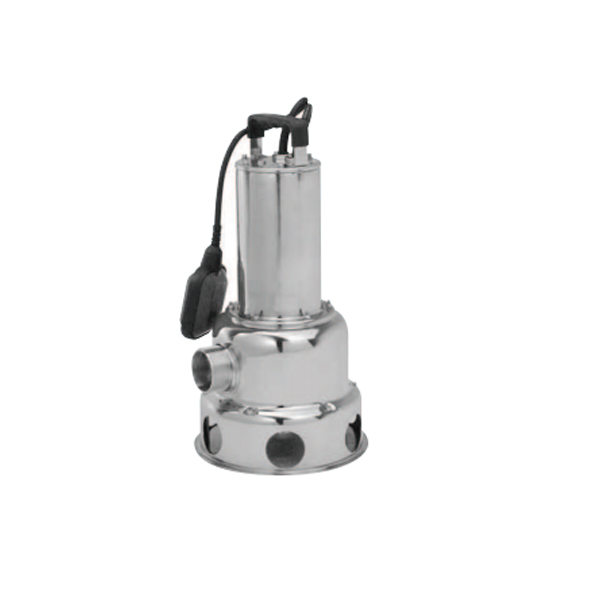

Lubi LBP 2115F - 1HP, 50Hz LBP Series Single Phase Stainless Steel Submersible Effluent Vortex Pump with Float Switch


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LBP 2115F - 1HP, 50Hz LBP Series Single Phase Stainless Steel Submersible Effluent Vortex Pump with Float Switch

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Light weight, portable.
  • Made of stainless steel AISI 304 sheet metal.
  • High quality mechanical shaft seal.
  • Class F motor insulation which can handle higher motor temperature.
  • Thermally protected motors which prevents motor from burn out.
  • Vortex impeller designs to handle solids laden sewage and fibrous substance.
  • A fully waterproof IP 68 structure, combined with a high grade silicon carbide mechanical seal.
  • Permanently lubricated ball bearings.
  • Flow rate upto 387 l/min (23 m3/h)
  • Dynamic head upto 9m.
  • Vortex Impellers create a hydraulic passage, allowing long fibrous materials to pass through without any contact with the impeller.
  • Direction of Rotation- Clockwise as seen from the motor rear end.

Area of Applications:

  • All applications of pumping and draining effluent, civil and industrial sewage with suspended solids.
  • Pumping stations with one or more pumps for civil and industrial plants.
Product Specifications

GENERAL

Brand:
Lubi
Disc:
50 mm, 2 inch
Frequency:
50 Hz
Head vs Discharge at 1 HP:
7.6 M: 50 LPM, 6.5 M: 100 LPM, 5.3 M: 150 LPM, 3.9 M: 200 LPM, 2.5 M: 250 LPM, 1 M: 300 LPM
Impeller Type:
Vortex
Max RPM:
2900 RPM
Model:
LBP-2115F
Phase:
Single
Power:
0.5 HP, 0.37 kW
Series:
LBP Series
Start Method:
Capacitor
Voltage:
230 V, +5 to 15%
Weight:
9.5 Kg
