Description

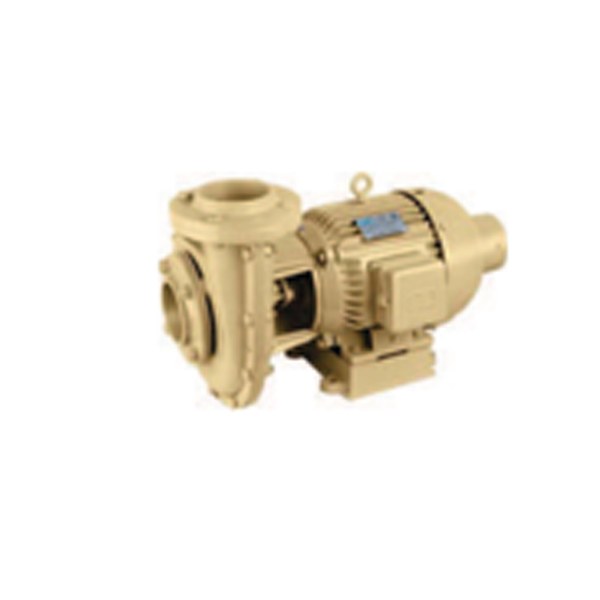

Lubi 2880 RPM Centrifugal monoblock pumpsets are manufactured as per IS: 9079 with strict quality control for years of efficient and reliable operation.

Features:

  • Monoblock are designed to withstand voltage drops to 320 Volts.
  • Better insulating materials are used so that monoblock can withstand high temperature rise.
  • High operating efficiencies of the monoblock result into greater water discharge rate and lower power bills.
  • The back pullout facility enables the monoblock to be serviced without disturbing the pipe work.
  • All components are manufactured from materials as per standard specification. They are precisely machined on modern machine tools to give you years of reliable operation.
  • All monoblock windings are vacuum impregnated with sybthetic varnish for better moisture resistance.
  • All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
  • All monoblock are fully tested as per the specification prior to dispatch.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 10 HP:
16 M: 2400 LPM, 18 M: 2280 LPM, 20 M: 2160 LPM, 22 M: 2040 LPM, 24 M: 1860 LPM, 26 M: 1560 LPM
Insulation Class:
A Class Insulation
Max RPM:
1440 RPM
Model:
LBL-54
Power:
10 HP
Rated Voltage:
415 V (-15% and +6%)
Series:
LBL Series
Size:
100x75 mm
