Buy Lubi LBI 111H - 5 HP Single Phase LBI Series End Suction Centrifugal Monoblock Pump Online

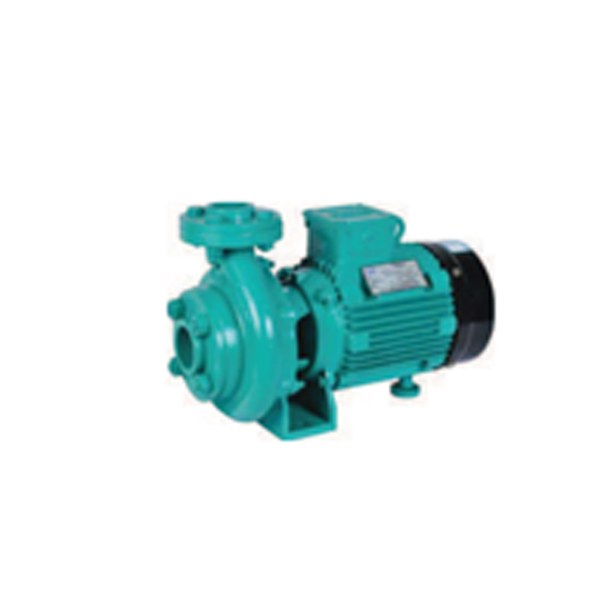

Lubi LBI 111H - 5 HP Single Phase LBI Series End Suction Centrifugal Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LBI 111H - 5 HP Single Phase LBI Series End Suction Centrifugal Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Lubi LBI series are non-self priming, horizontal, single-stage, centrifugal, end-suction pumps. The pump is fitted with a maintenance-free, mechanical shaft seal and single piece pump-motor shaft. The pumps have axial suction port and radial discharge port.

Features:

  • Compact design.
  • Easy and simple installation.
  • User-friendly operation.
  • Low noise level.
  • Reliable and robust construction.
  • Reliable water supply.
  • Built-in motor protection, dry running protection.
  • Back pull-out design which simplifies inspection and maintenance.
  • Operating conditions -Flow range: Up to 156 m3;/h, Head range: Up to 55 metres, Ambient temperature: Max. +50 deg C, Liquid temperature range: 0 deg C to +90 deg C, Total suction lift: Up to 8 metres.
  • Direction of rotation: Clockwise as seen from the motor rear end.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 5 HP:
43 M: 100 LPM, 42 M: 150 LPM, 40 M: 200 LPM, 37 M: 250 LPM, 31 M: 300 LPM
Max RPM:
2900 RPM
Model:
LBI 111H
Number of Phase:
Single
Power:
5 HP, 3.7 kW
Series:
LBI Series
