Buy Lubi LBI 1 - 3 HP Three Phase LBI Series End Suction Centrifugal Monoblock Pump Online

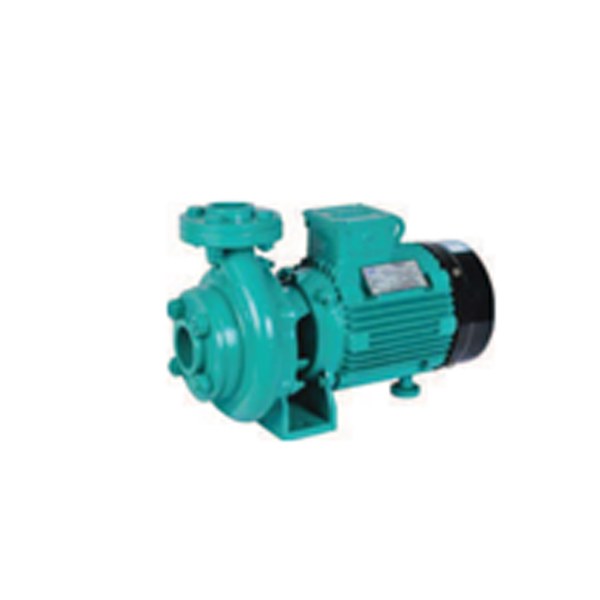

Lubi LBI 1 - 3 HP Three Phase LBI Series End Suction Centrifugal Monoblock Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LBI 1 - 3 HP Three Phase LBI Series End Suction Centrifugal Monoblock Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Lubi LBI series are non-self priming, horizontal, single-stage, centrifugal, end-suction pumps. The Lubi 3 HP 3 Phase LBI Series End Suction Centrifugal Monoblock Pump is fitted with a maintenance-free, mechanical shaft seal and a single-piece pump-motor shaft. The lubi monoblock pump 3 hp has an axial suction port and radial discharge port. These centrifugal monoblock pumps are available from 2.2 to 3.7 kW in a single-phase and from 1.5 to 11 kW in 3 phase power supply. Usually, the pumps and motors are coupled with convenience and in a compact design for quick and easy installation. It is a low noise level with reliable and robust construction. It has a unique feature of the back pull out design that simplifies the inspection and maintenance process. It is most commonly preferred for water supply systems and irrigations, for heating and cooling & circulation plants, and applications like civil, industrial and fire fighting sectors. These 3 phase monoblock pumps are suitable for use with the potable water, rainwater, non-aggressive and non-explosive type of liquids.

Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 3 HP:
30 M: 250 LPM, 24 M: 350 LPM, 20 M: 400 LPM, 16 M: 450 LPM
Max RPM:
2900 RPM
Model:
LBI 1
Number of Phase:
Three
Power:
3 HP, 2.2 kW
Series:
LBI Series
