Buy Lubi LBH 46 - 5 HP A Class Insulation Three Phase LBH Series High/Low Speed Centrifugal Monoblock Pumpset Online

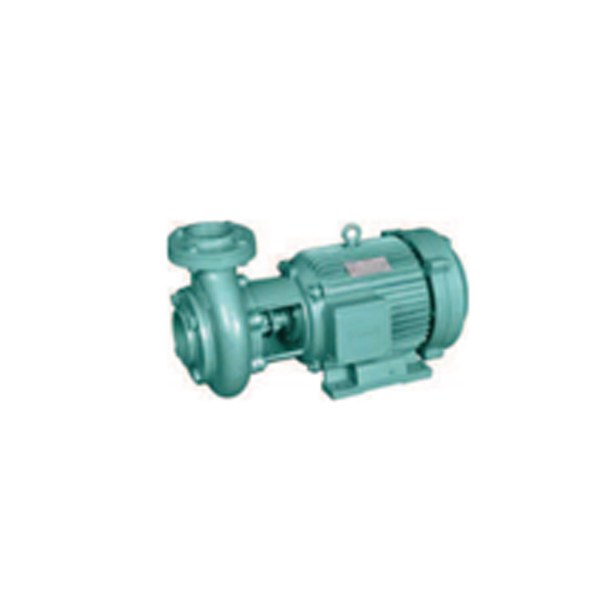

Lubi LBH 46 - 5 HP A Class Insulation Three Phase LBH Series High/Low Speed Centrifugal Monoblock Pumpset


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LBH 46 - 5 HP A Class Insulation Three Phase LBH Series High/Low Speed Centrifugal Monoblock Pumpset

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Lubi LBH 46 - 5 HP A-Class Insulation Three Phase LBH Series High/Low-Speed Centrifugal Monoblock Pumpset - Lubi centrifugal monoblock pump has a lamination of non-oriented silicon steel. It has a motor windings that are vacuum impregnated with synthetic varnish for moisture resistance. The 3 phase monoblock pump set has a superior mechanical shaft seal to avoid water leakage problem. The machine is made up of better insulating material to withstand high-temperature rise. Some of its typical applications include residential bungalows, construction site, sprinklers, hotels and hospitals.

Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 5 HP:
24 M: 570 LPM, 26 M: 560 LPM, 28 M: 550 LPM, 30 M: 540 LPM, 32 M: 500 LPM, 36 M: 370 LPM
Insulation Class:
A Class Insulation
Max RPM:
2880 RPM
Model:
LBH-46
Power:
5 HP
Rated Voltage:
415 V (-15% and +6%)
Series:
LBH Series
Size:
65x50 mm
