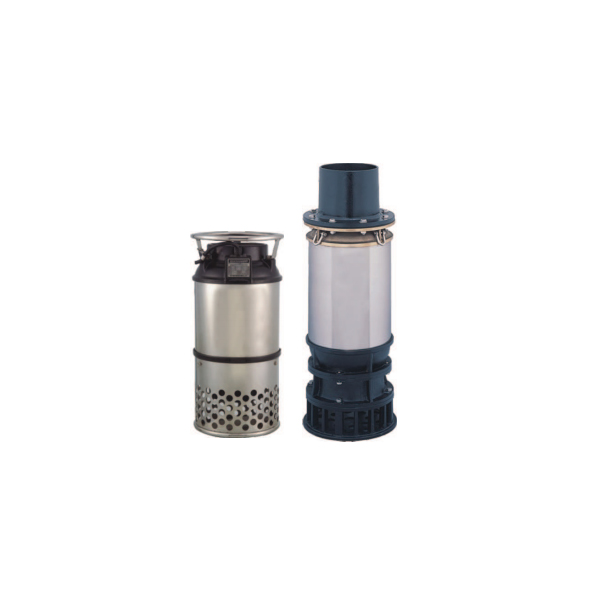

Lubi LAS 41535 - 15 HP, 50Hz LAS Series Three Phase Heavy Duty Construction Drainage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Lubi

Lubi LAS 41535 - 15 HP, 50Hz LAS Series Three Phase Heavy Duty Construction Drainage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Flow rate upto 2600 l/min (156 m3/h)
  • Dynamic head upto 47 m.
  • Specially designed for civil engineering applications, where a heavy duty, light weight, top discharge design is required which is easy to handle. The double outer casing, water cooled motor makes it particularly suitable for low water level applications.
  • A fully waterproof IP 68 stainless steel structure, combined with a high grade silicon carbide double mechanical seals.
  • The LAS range of pumps are compact, strong and easy to operate in any situation.
  • Special designed high efficient and wear resistant HCR (High Chrome) impeller.
  • Multi impeller design suitable from high head with small capacity to low head with large capacity of application requirement.
  • Direction of Rotation- Clockwise as seen from the motor rear end.
  • Thermal Overload Protector- Equipped with automatic reset motor protector prevents motor from burning due to high temperature/ phase failure/ Voltage drop and locked impeller.
  • HCR Impeller- The LAS impeller is manufactured with a high chrome alloy (HCR) steel with a hardness of 50- 60 Rc, which makes it resistant to prolonged use in abrasive applications.

Area of Application:

  • Civil engineering dewatering of tunneling and ground works, also for storm water sewers.
  • Dewatering of fluids containing solid sediments.
Product Specifications

GENERAL

Brand:
Lubi
Dimensions:
290x290x725 mm
Disc:
100 mm, 4 inch
Frequency:
50 Hz
Head vs Discharge at 15 HP:
45.3 M: 200 LPM, 44 M: 300 LPM, 42.7 M: 400 LPM, 41.3 M: 500 LPM, 39.9 M: 600 LPM, 37 M: 800 LPM, 35.4 M: 900 LPM, 33.8 M: 1000 LPM, 32.2 M: 1100 LPM, 30.5 M: 1200 LPM, 27 M: 1400 LPM, 23.3 M: 1600 LPM, 19.3 M: 1800 LPM
Max RPM:
2900 RPM
Model:
LAS 41535
Phase:
Three
Power:
15 HP, 11 kW
Series:
LAS Series
Solid Passage:
10 mm
Start Method:
Direct
Weight:
76 Kg
