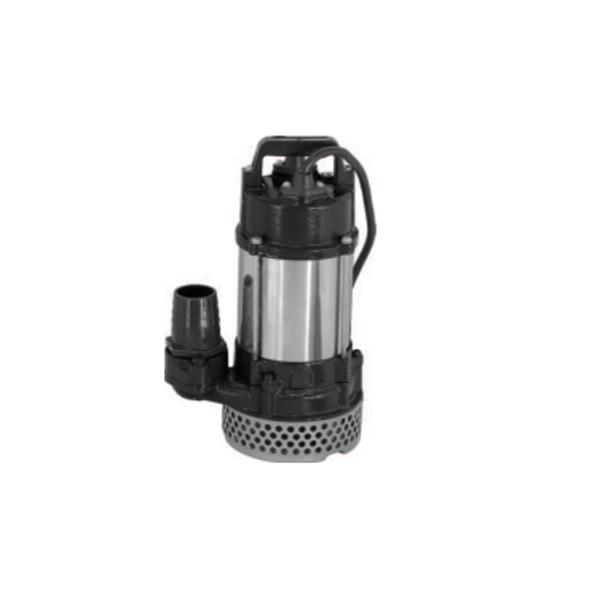

Lubi LAP 4335 - 3HP, 50Hz LAP Series Three Phase Direct Drainage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LAP 4335 - 3HP, 50Hz LAP Series Three Phase Direct Drainage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • New design for light weight, elegant shape with best quality.
  • Unfastening the bolts between the oil casing and the upper pump casing allows the body to be seperated for easy maintenance.
  • Direction of rotation- Clockwise as seen from the motor end.
  • Flow rate upto 1000 l/min (60 m3/h)
  • Dynamic head upto 29 m.
  • 2 pole dry submersible motor.
  • Protection IP 68.
  • Insulation class F.
  • Ambient temperature Max +50 deg C.
  • Liquid temperature 0 deg C to +50 deg C.
  • Max starts per hour 30 at regular intervals.
Product Specifications

GENERAL

Area of Application:
Slushy water, waste water without solids, sump drainage, Drainage application, Flood control, Dewatering for fish pond or basement
Brand:
Lubi
Dimensions:
390x208x495 mm
Disc:
100 mm, 4 inch
Frequency:
50 Hz
Head vs Discharge at 3 HP:
19.7 M: 100 LPH, 19 M: 150 LPH, 18.4 M: 200 LPH, 17 M: 300 LPH, 15.5 M: 400 LPH, 13.8 M: 500 LPH, 12 M: 600 LPH, 9 M: 750 LPH, 5.5 M: 900 LPH
Max RPM:
2900 RPM
Model:
LAP-4335
Phase:
Three
Power:
3 HP, 2.20 kW
Series:
LAP Series
Solid Passage:
11 mm
Start Method:
Direct
Voltage:
400 V, +5 to 15%
Weight:
43 Kg
