Buy Lubi LAP 2315 - 3HP, 50Hz LAP Series Single Phase Capacitor Drainage Pump Online

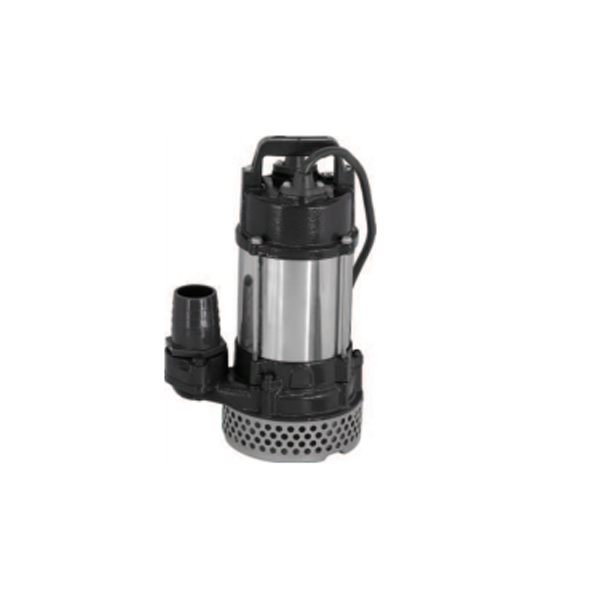

Lubi LAP 2315 - 3HP, 50Hz LAP Series Single Phase Capacitor Drainage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LAP 2315 - 3HP, 50Hz LAP Series Single Phase Capacitor Drainage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

LUBI 3 HP Single phase Drainage Pump Lubi LAP 2315 is designed to handle the toughest conditions and high solid content for a variety of applications like waste and greywater handling sewage disposal, effluent treatment plant, drainage, floodwater control, etc. Pumping surface and drainage water from garages and sprinkler systems. Lubi drainage pump helps in preventing the frequent clogging of the sewer system. This lubi sewage pump is designed using high-grade raw material that meets the laid industry standards. Submersible drainage pump requires low maintenance, has a long service life, and is highly durable. Some of its standard accessories include vct cable with epoxy resin sealed stainless steel cable base, ac thermal motor processor, etc.

Product Attributes:

  • New design for light weight, elegant shape with best quality.
  • Unfastening the bolts between the oil casing and the upper pump casing allows the body to be seperated for easy maintenance.
  • Direction of rotation- Clockwise as seen from the motor end.
  • Flow rate upto 1000 l/min (60 m3/h)
  • Dynamic head upto 29 m.
  • 2 pole dry submersible motor.
  • Protection IP 68.
  • Insulation class F.
  • Ambient temperature Max +50 deg C.
  • Liquid temperature 0 deg C to +50 deg C.
  • Max starts per hour 30 at regular intervals.
Product Specifications

GENERAL

Area of Application:
Slushy water, waste water without solids, sump drainage, Drainage application, Flood control, Dewatering for fish pond or basement
Brand:
Lubi
Dimensions:
412x208x569 mm
Disc:
50 mm, 2 inch
Frequency:
50 Hz
Head vs Discharge at 3 HP:
27 M: 100 LPH, 26 M: 150 LPH, 24.5 M: 200 LPH, 21.2 M: 300 LPH, 16.6 M: 400 LPH, 10.5 M: 500 LPH
Max RPM:
2900 RPM
Model:
LAP-2315
Phase:
Single
Power:
3 HP, 2.20 kW
Series:
LAP Series
Solid Passage:
11 mm
Start Method:
Capacitor
Voltage:
230 V, +5 to 15%
Weight:
46 Kg
