Buy Lubi LAP 2115 - 1HP, 50Hz LAP Series Single Phase Capacitor Drainage Pump Online

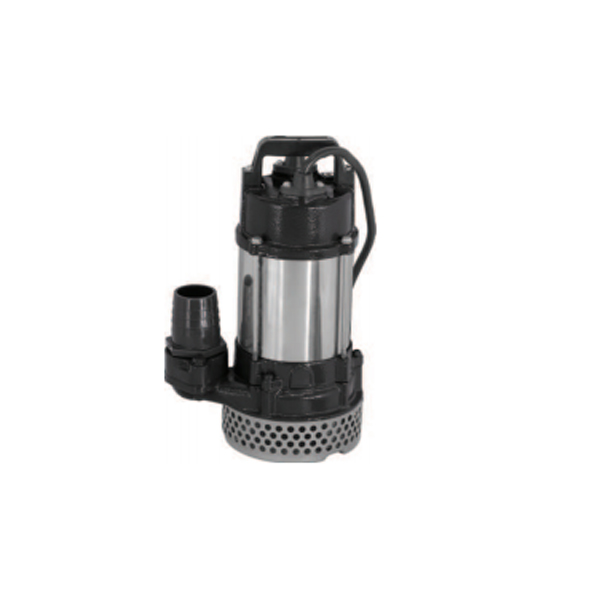

Lubi LAP 2115 - 1HP, 50Hz LAP Series Single Phase Capacitor Drainage Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi LAP 2115 - 1HP, 50Hz LAP Series Single Phase Capacitor Drainage Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • New design for light weight, elegant shape with best quality.
  • Unfastening the bolts between the oil casing and the upper pump casing allows the body to be seperated for easy maintenance.
  • Direction of rotation- Clockwise as seen from the motor end.
  • Flow rate upto 1000 l/min (60 m3/h)
  • Dynamic head upto 29 m.
  • 2 pole dry submersible motor.
  • Protection IP 68.
  • Insulation class F.
  • Ambient temperature Max +50 deg C.
  • Liquid temperature 0 deg C to +50 deg C.
  • Max starts per hour 30 at regular intervals.
Product Specifications

GENERAL

Area of Application:
Slushy water, waste water without solids, sump drainage, Drainage application, Flood control, Dewatering for fish pond or basement
Brand:
Lubi
Dimensions:
277x178x440 mm
Disc:
50 mm, 2 inch
Frequency:
50 Hz
Head vs Discharge at 1 HP:
12.5 M: 100 LPH, 11 M: 150 LPH, 9.4 M: 200 LPH, 5.5 M: 300 LPH
Max RPM:
2900 RPM
Model:
LAP-2115
Phase:
Single
Power:
1 HP, 0.75 kW
Series:
LAP Series
Solid Passage:
10 mm
Start Method:
Capacitor
Voltage:
230 V, +5 to 15%
Weight:
19 Kg
