Buy Lubi K80A/39 - 35 HP 6 inch Cast Iron Radial Flow 50Hz Electric Submersible Bore Well Pump Online

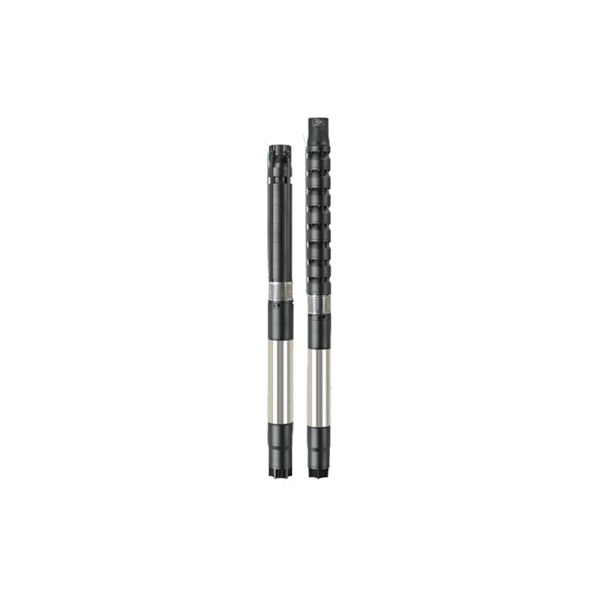

Lubi K80A/39 - 35 HP 6 inch Cast Iron Radial Flow 50Hz Electric Submersible Bore Well Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi K80A/39 - 35 HP 6 inch Cast Iron Radial Flow 50Hz Electric Submersible Bore Well Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Submersible motor and pumps for deep wells of 6 inch (DN 150 mm).
  • Sized for connection to the motor according to NEMA standards.
  • Delivery casing with built-in non return valve.
  • Connection: Screwed pipe connection.
  • Area of Application: For water supply, Irrigation, Civil and industrial applications, Fire fighting applications.
  • Head Range: Up to 495 meters.
  • Flow Range: Up to 94.2 m3/h.
  • Water Temperature upto 45 deg C.
  • Max sand quantity into the water: 50 g/m3.
  • Max starts per hour: 20 at regular intervals.
  • Direction of Rotation: Clockwise as seen from the pump coupling side.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 35 HP:
390 M: 200 LPM, 359 M: 245 LPM, 320 M: 295 LPM, 265 M: 345 LPM, 195 M: 400 LPM, 117 M: 440 LPM
Max RPM:
2900 RPM
Model:
K80A/39
Motor Type:
Water Filled- L6535-KP
Power:
35 HP, 26 kW
Size:
6 inch
