Buy Lubi K250A/26 - 70 HP 8 inch Cast Iron Radial Flow 50Hz Electric Submersible Bore Well Pump Online

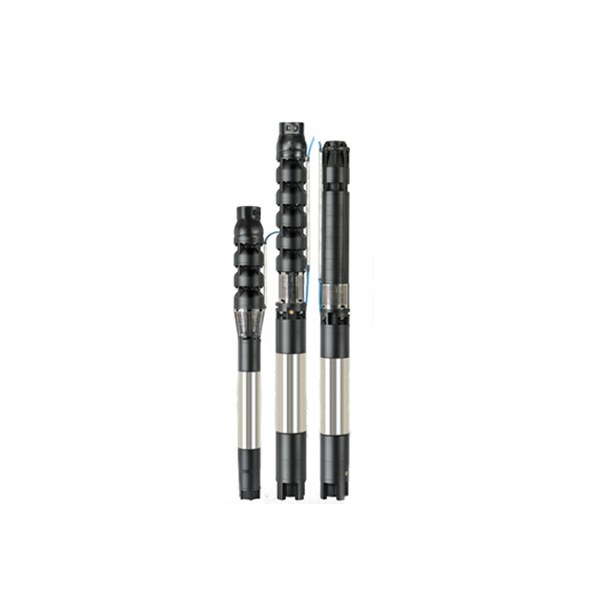

Lubi K250A/26 - 70 HP 8 inch Cast Iron Radial Flow 50Hz Electric Submersible Bore Well Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi K250A/26 - 70 HP 8 inch Cast Iron Radial Flow 50Hz Electric Submersible Bore Well Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Suitable for Submersible motor and pumps for deep wells of 8 inch (DN 200 mm).
  • Sized for connection to the motor according to NEMA standards.
  • Delivery casing with built-in non-return valve.
  • Connection: Screwed pipe connection.
  • Area of Applications: For Water supply, Irrigation, Civil and Industrial applications and Fire Fighting applications.
  • Head Range upto 600 meters.
  • Flow range upto 159 m3/h.
  • Water temperature upto 45 deg C.
  • Max Sand quantity into the water: 50 g/m3.
  • Max Starts per hour: 20 at regular intervals.
  • Direction of Rotation: Clockwise as seen from the pump coupling side.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 70 HP:
511 M: 270 LPM, 485 M: 340 LPM, 433 M: 450 LPM, 381 M: 530 LPM, 303 M: 635 LPM, 225 M: 730 LPM
Max RPM:
2900 RPM
Model:
K250A/26
Motor Type:
Water Filled- L8570-KP
Power:
70 HP, 52 kW
Size:
8 inch
