Buy Lubi J9/18 - 7.5 HP 6 inch Stainless Steel 50Hz Submersible Bore Well Pump Online

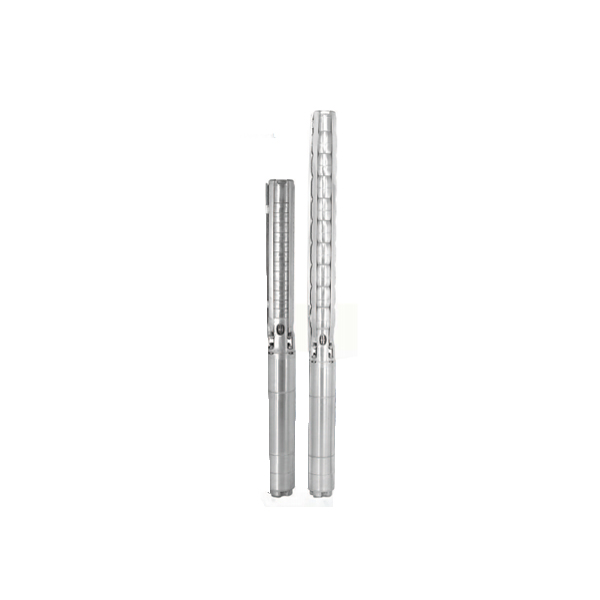

Lubi J9/18 - 7.5 HP 6 inch Stainless Steel 50Hz Submersible Bore Well Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Lubi J9/18 - 7.5 HP 6 inch Stainless Steel 50Hz Submersible Bore Well Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Submersible motor and pumps for deep wells of 6 inch (DN 150 mm).
  • Sized for connection to the motor according to NEMA standards.
  • Delivering casing with built in non return valve.
  • All standard pumps are completely manufactured out of stainless steel AISI 304 sheet metal.
  • Radial flow impellers- J6, J9, J12, J17, J17A, J20, J24, J13H, J16H, J18H.
  • Mixed flow impellers- W17, W30, W46, W60.
  • Connection- Screwed pipe connection with BSP thread as standard.
  • Area of Applications- Water supply, Irrigation, Civil, Industrial, Fire fighting.
  • Performance range- Flow range: Max 78 m3/h.
  • Head range- Max 750 meters.
  • Direction of rotation- Clockwise as seen from the pump coupling side.
Product Specifications

GENERAL

Brand:
Lubi
Frequency:
50 Hz
Head vs Discharge at 7.5 HP:
182 M: 0 LPM, 161 M: 100 LPM, 149 M: 133 LPM, 135 M: 160 LPM, 109 M: 200 LPM, 72 M: 235 LPM, 13 M: 275 LPM
Max RPM:
2900 RPM
Model:
J9/18
Motor Type:
Oil Filled- H4575, Water Filled- L4575
Power:
7.5 HP, 5.5 kW
Size:
6 inch
