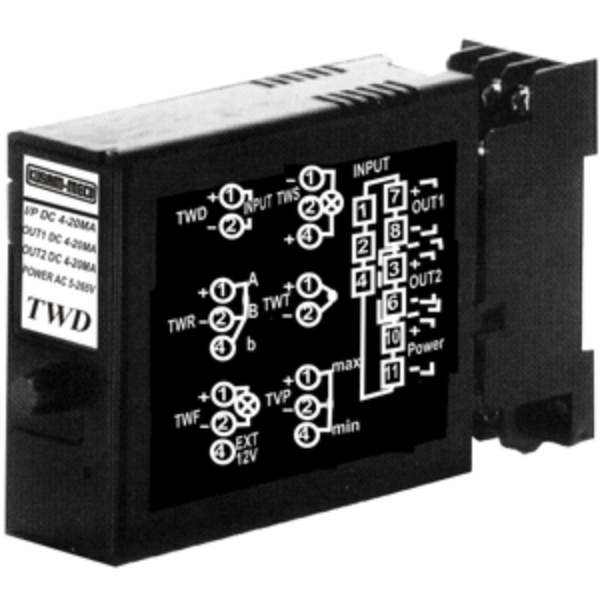

The Kusam Meco - Two Output, DC Isolation has a sturdy plastic case to keep the circuit intact. It offers safety from electric shock during operation. The Two Output DC Isolation offers high accuracy during domestic and commercial applications. The ergonomic design of this DC Isolation facilitates easy mounting on the wall and DIN rail.
Product Specifications:
Brand: Kusam Meco
Country of Origin: India
Product: Two Output DC Isolation
Model No.: TW Series TWD
Accuracy: 0.1%RO at 23℃ ± 5℃
Insulation Resistance:≧100M / DC 500V
Input Impedance: Voltage Input ≧1MW, Current Input ≦50
Output Load: DC
Input Protection:≧2V DC ≦300V RMS
Dielectric Strength: AC 2000V / Min
Linearity & Repeatability:≦0.1% Typical
Stability:≦ 0.2% / Year
Common Mode Rejection:≧120db DC to 60Hz
Response Time:≦400 mS
Temperature Coefficient:≦100ppm / ℃
Ripple:≦0.1% RMS RO
Operation Condition:-5℃~+55℃
Aux. Power Effect:≦0.03% / V
Dimension (WXHXL):27 x 119 x 70 mm
Mounting: DIN Rail or Wall Mounting
Key Features:
Two input and output modes.
Offer high accuracy.
