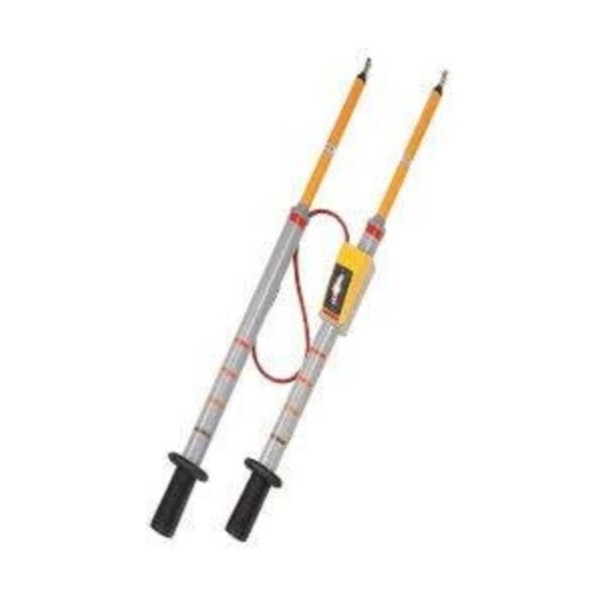

The Kusam Meco - High Voltage Multifunction Phasing Sticks with Analog Display is a sturdy and rugged built Phasing Stick that is a multitasking device used in electrical industries. The Fiberglass in this Multifunction Phasing Sticks with Analog Display is of hot stick quality and tested to IEC specs (100kV / 300mm for 1min). All front end resistors in this product have been encapsulated. This High Voltage Multifunction Phasing Sticks with Analog Display is best suited for testing grounded or sometimes ungrounded systems, making it one of the best in the market.
Product Specifications:
Brand: Kusam Meco
Country of Origin: China
Model: PC 11 KV
Product: Phasing Sticks
Display: Analog
Function: Multifunction
System Voltage: 11 kV
Full-Scale Voltage: 12 kV
Maximum Voltage: 15 kV
Total Resistance: 6.78 MΩ
Response Time: <1 sec
Neon Threshold: 1.2 kV
Neon Lit Fully: 1.5 kV
Length of Handle: 775 mm
Length Front End: 400 mm
Total Length: 1.175 M
Total Weight: 2.1 Kg
Handle Material: Composite
Material with Polyurethane
Front End: Fibre Glass Wound Tubing
Operating Temperature: -25°C to 55°C
Operating Humidity: 20 to 96 % RH
Key Features:
Very little Response time
Fibre Glass Wound Tubing
