Accuracy:
0.05%FS + 2 Counts at 23'C*3'C .
Consumed Power:
3VA , Pr = 1
Dead Band:
0~9999 Counts User Selectable.
Dielectric Strength:
2KV AC / Min Between Input / Power / Case.
Digital output:
RS-485 Output, 1200,2400,4800,9600,19200 Baud Rate, User Selectable.
Display Range:
0.56 High Brightness RED LED , 5 Digits, -t9999 - 99999Countx
Impulse:
5 KV 1.2x50 uS, ANSI C37.90a / 1983.DIN IEC 255 4.
Input Resistance:
Current Input <= 20 Ohm
Load Resistance:
<=250 Ohm.

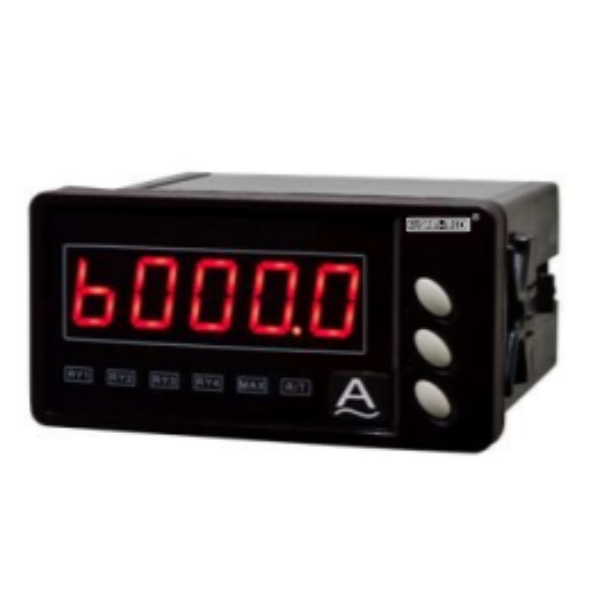

Model Number:
MM Series - MMS];(GENERAL) Output Response Time: S[<=1 Sec
Mounting:
Panel Flush Mounting.
Outline Dimensions:
1/8 DIN 96W X 48H X 100D mm.
Output Protection:
Without Damage for Output Open or Short Circuit.
Power Supply:
AC or DC 120%, 50 / 60Hz.
Setting Function:
4 Alarm Setting, Setting Function(Hi or Lo) User Selectable.
Setting Range:
-19999~99999 Counts
Short Circuit Current:
30mA.
SPDT Capacity:
AC l20V 3A , DC 30V 3A.
Storage Condition:
- 40°C + 75C 20 95% RH Non-Condensed.
Temperature Coefficient:
<= 60ppm / Degree C from 0 ~60Degree
Time Delay:
0~999 Sec. User Selectable.
