Description

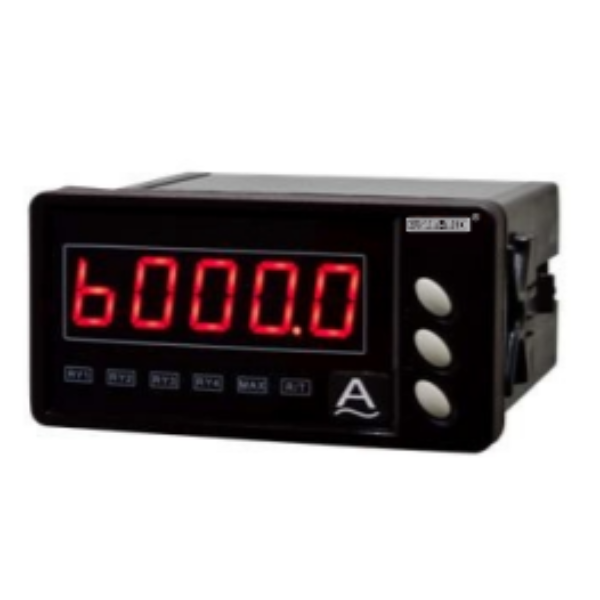

The Kusum Meco Full function RS 485 RTU Input meter offers much performance and features capabilities to suit many housing and industrial applications. The meter has a bright LED display. You can adjust the intensity of the LED display, making it ideal for viewing in dark or bright conditions. The optional plug-in output of cards allows the opportunity to configure the meter for present applications. The meter can accept digital inputs from a variety of sources. It can also receive directional, unidirectional signals simultaneously. Each input signal allows independently scaled various process values. In addition, the RS 485 RTU input meter provides a maximum and minimum reading memory with programmable capture time.
Product specialisation
Brand: Kusam Meco
Communication Protocol: Modbus RTU
Consumed Power: 3VA , PF = 1
Country of Origin: India
Input Frequency: 45 400Hz.
Response Time: 200 msec
SPDT Capacity: AC 120V 3A,, DC 30V 3A.
Power Supply: AC or DC ±20%, 50 / 60Hz.
Key features
Digital display
Portable
Lightweight

Product Specifications

GENERAL

Address:
1~255
Alarm Setting:
2 or 4 Alarm Setting, Setting Function(Hi or Lo) User Selectable.
Baud Rate:
4800-9600-19200-38400 (programmable)
Brand:
Kusam Meco
Communication Protocol:
Modbus RTU
Consumed Power:
3VA , PF = 1
Country of Origin:
India
Data Bit:
8 bit
Data Form:
Unsigned Int / Signed Int
Dead Band:
0 to 9999 Counts User Selectable.
Dielectric Strength:
2KV AC / Min Between Input / Power / Case.
Input Frequency:
45 400Hz.
Mode:
Master or Slave
Model Number:
MM Series - MMG];(GENERAL) Display Range: S[0.56" High brightness RED LED,5 Digits. Unsigned Int
Mounting:
Panel Flush Mounting.
Operating Condition:
10 55 20 95% RH Non-Condensed.
Outline Dimension:
1/8 DIN 96W X 48H X 100D mm.
Parity Check:
NONE-ODD-EVEN (programmable)
Power Supply:
AC or DC ±20%, 50 / 60Hz.
Response Time:
200 msec
Setting Range:
-19999 99999 Counts User Selectable.
SPDT Capacity:
AC 120V 3A,, DC 30V 3A.
Stop Bit:
1 or 2 (programmable)
Storage Condition:
40 75 20 95% RH Non-Condensed.
Time Delay:
0 to 999 Sec. User Selectable.
