Buy Kusam Meco MM Series MMD - Full Function DC Voltage/ Current Meter Online

Kusam Meco MM Series MMD - Full Function DC Voltage/ Current Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Kusam Meco MM Series MMD - Full Function DC Voltage/ Current Meter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

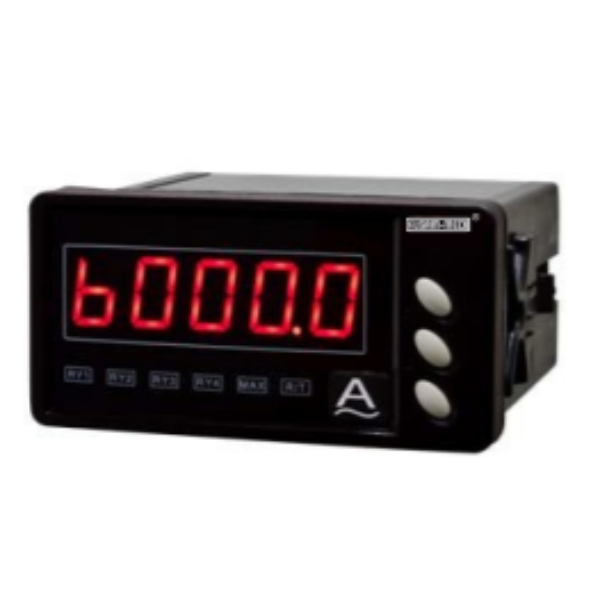

The Kusam Meco - Full Function DC Voltage/ Current Meter is an instrument for measuring the voltage of two circuit points. It has a fully insulated structure to ensure safety during application. The large LCD of the Full Function DC Voltage/ Current Meter provides accurate results during operation. Separate functioning buttons of the DC Voltage/ Current Meter help users perform tests efficiently.
Product Specifications:
Brand: Kusam Meco
Country of Origin: India
Product: Full Function DC Voltage/ Current Meter
Model No.: MM Series MMD
Accuracy: 0.1%FS + 2 Counts at 23-3 Degree C
Power Consumption: 3VA
Dead Band: 0-9999 Counts
Display Range: 0.56" High Brightness RED LED
Digital Output: RS-485 Output
Impulse: 5 KV 1.2x50 uS
Mounting: Panel Flush
Dimensions: 1/8 DIN 96W X 48H X 100D mm
Operating Conditions: -10- 55 Degree C 20 95% RH Non-Condensed
Power Supply: AC or DC î20%, 50 / 60Hz
Setting Function: 4 Alarm
Setting Range: -19999~99999 Counts
Key Features:
Compact structure.
Insulated surface for user protection.
Large LCD

Product Specifications

GENERAL

Accuracy:
0.1%FS + 2 Counts at 23-3 Degree C .
Brand:
Kusam Meco
Consumed Power:
3VA , PF = 1
Country of Origin:
India
Dead Band:
0-9999 Counts.
Dielectric Strength:
2KV AC / Min Between Input / Power / Case.
Digital output:
RS-485 Output, 1200,2400,4800,9600,19200 Baud Rate, User Selectable.
Display Range:
0.56" High Brightness RED LED , 5 Digits, -19999 - 99999Counts
Impulse:
5 KV 1.2x50 uS, ANSI C37.90a / 1983.DIN IEC 255- 4.
Model Number:
MM Series - MMD];(GENERAL) Output Response Time: S[<=1 Sec. ( propammab1c pet 100ms/unit )
Mounting:
Panel Flush Mounting.
Operating Condition:
-10- 55 Degree C 20 95% RH Non-Condensed.
Outline Dimensions:
1/8 DIN 96W X 48H X 100D mm.
Output Protection:
Without Damage for Output Open or Short Circuit.
Power Supply:
AC or DC î20%, 50 / 60Hz.
Setting Function:
4 Alarm Setting Function, Setting Function (Hi-Lo) User Selectable.
Setting Range:
-19999~99999 Counts
SPDT Capacity:
AC 120V 3A , DC 30V 3A.
Stability:
<=0.2%/Year.
Storage Condition:
-40 to +75°C 20 95% RH Non-Condensed.
Time Delay:
0-999 Sec. User Selectable.
