Buy Kusam Meco MM Series MMAR - Full Function AC Current Meter TRMS Online
Kusam Meco

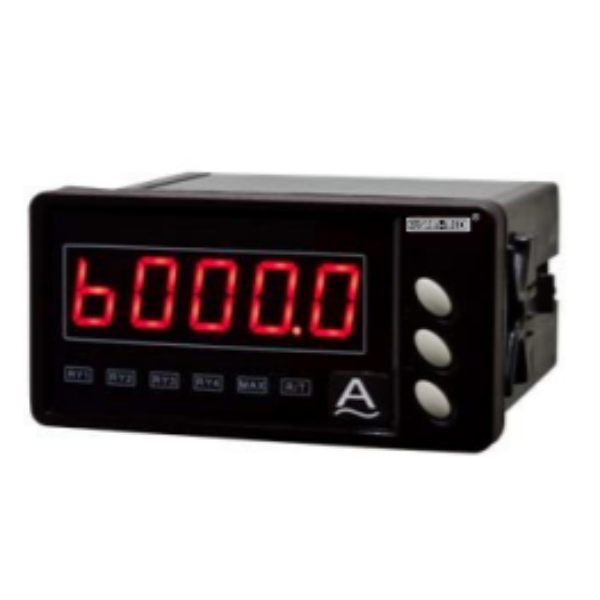

Kusam Meco MM Series MMAR - Full Function AC Current Meter TRMS


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Kusam Meco

Kusam Meco MM Series MMAR - Full Function AC Current Meter TRMS

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Available in black, the Kusam Meco - Full Function AC Current Meter TRMS is beneficial for versatile applications and comes in a portable size. Besides, the Full Function AC Current Meter TRMS has a rigid fire-resistant enclosure and offers optimal functionality. Furthermore, this AC Current Meter TRMS runs on a battery and has a clear display. In addition, the Kusam Meco - Full Function AC Current Meter TRMS provides accurate measurement of the Non-Sinusoidal and Sinusoidal AC waveforms.
Product Specifications:
Brand: Kusam Meco
Product: Full Function AC Current Meter TRMS
Model: MM Series MMAR
Country of Origin: India
Packaging Unit: 1 piece
DC current: 0 20 mA DC
Dead Band: 0~9999 Counts User Selectable
Dielectric Strength: 2KV AC / Min Between Input / Power / Case
Input Burden Input Over: 0.25 VA at 60 Hz
Input Frequency: 45~70 Hz
Input Over: Normal AC 5A, Current Over 20A Continuous
Operating Condition: -10°C +55°C 20 ~95% RH Non-Condensed
Outline Dimensions: 1/8 DIN 96W X 48H X 100D mm
Power Supply: AC or DC 120%, 50 / 60Hz
Setting Range: -19999~99999 Counts User Selectable
SPDT Capacity: AC 120V 3A, DC 30V 3A
Stability: <= 0.2%/Year
Temperature Coefficient: <=60ppm / °C From 0 to 60 Degree C
Time Delay: 0~999 Sec. User Selectable
Key Features:
It is water, shock, and corrosion-resistant.
It shows precise measurement.
It operates consistently without malfunctioning.

Product Specifications

GENERAL

Accuracy:
0.15%FS+1 Counts. Avg. Typically at 23Degree C 13 DegreeC . 0.25%FS+1 Counts. TRMS Typically at 23Degree C 3Degree C . Setting Function
Brand:
Kusam Meco
Country of Origin:
India
DC current:
0 — 20 mA DC
Dead Band:
0~9999 Counts User Selectable.
Dielectric Strength:
2KV AC / Min Between Input / Power / Case.
Digital output:
RS-485 Output, 1200,2400,4800,9600,19200 Baud Rate, User Selectable.
Display Range:
0.56" High brightness RED LED 5 Digits, -19999 99999Counts..
Impulse:
5 KV 1.2 x 50 uS, ANSI C37.90a / 1983.DIN IEC 255- 4.
Input Burden Input Over:
0.25 VA at 60 Hz
Input Frequency:
45~70 Hz
Input Over:
Normal AC 5A, Current Over 20A Continuous
Model Number:
MM Series - MMAR];(GENERAL) Output Response Time: S[<= 1 Sec. ( grogrammah1e per l00ms/unit )
Mounting:
Panel Flush Mounting.
Operating Condition:
-10°C +55°C 20 ~95% RH Non-Condensed
Outline Dimensions:
1/8 DIN 96W X 48H X 100D mm.
Output Protection:
Without Damage for Output Open or Short Circuit.
Power Supply:
AC or DC 120%, 50 / 60Hz.
Setting Range:
-19999~99999 Counts User Selectable.
SPDT Capacity:
AC 120V 3A, DC 30V 3A.
Stability:
<= 0.2%/Year.
Storing Condition:
-40°C +75°C 20~95% RH Non-Condensed. Consumed Power
Temperature Coefficient:
<=60ppm / °C From 0 to 60 Degree C
Time Delay:
0~999 Sec. User Selectable.
