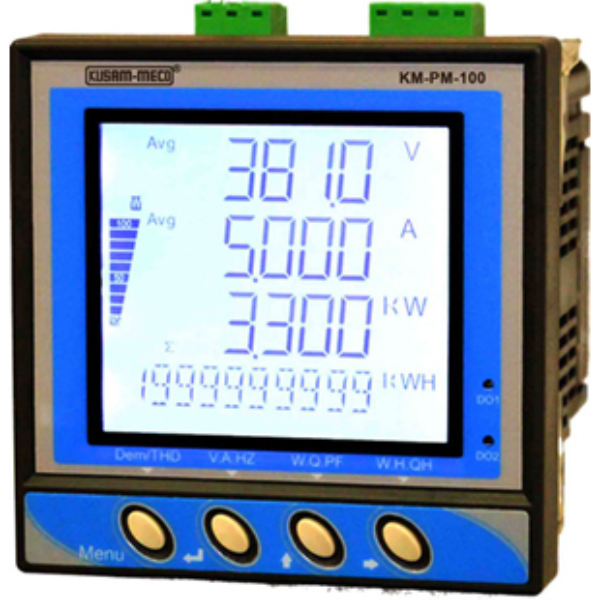

Kusam Meco KM PM 100 - 5 A Digital Multifunction TRMS Power Meter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Kusam Meco KM PM 100 - 5 A Digital Multifunction TRMS Power Meter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • LCD display screen with backlight
  • Programmable brightness for backlight.
  • Communication : RS-485 ModBbus RTU (Optional)
  • Ethernet TCP _ IP 10/100 BaseT (Optional)
  • Output : 4 Sets 4-20mA , 4 Alarm, 2 Pulse.
  • Programmable for PT and CT ratio.
  • Measures +/- WH and +/- VARH (10-digit display).
  • TRMS sampling, 128 section per cycle.
  • Password - protection for unauthorized setting.
  • Memory for 10 years.
Product Specifications

GENERAL

Brand:
Kusam Meco
Communication:
RS- 485 Modbus RTU
Country of Origin:
China
Current Range:
Input 5A: 2mA-6A, Input 1A: 2mA-1.5A
Dielectric Strength:
AC 2.8K V/ Min
Dimensions:
100x100x96 mm
Display:
LCD Display with Backlight
Ethernet:
TCP / IP 100 Base T
Harmonic:
KM-PM-100H 15 times for Voltage and Current
Input Frequency:
45-70 Hz
Model:
KM-PM-100
Mounting:
Panel Flush Mounting
Operating Condition:
-20 to 65 Degree C
Power Supply:
AC 85-265V / DC 100-300V 50 / 60 Hz
Response Time:
Lessthan or Equal to 1 second
Storage Condition:
-40 to 75 Degree C
Voltage range:
Input 55-440 V (L-L) (Max : 480 V L-L), Input 55-600 V (L-L) (Max: 700 V L-L)
