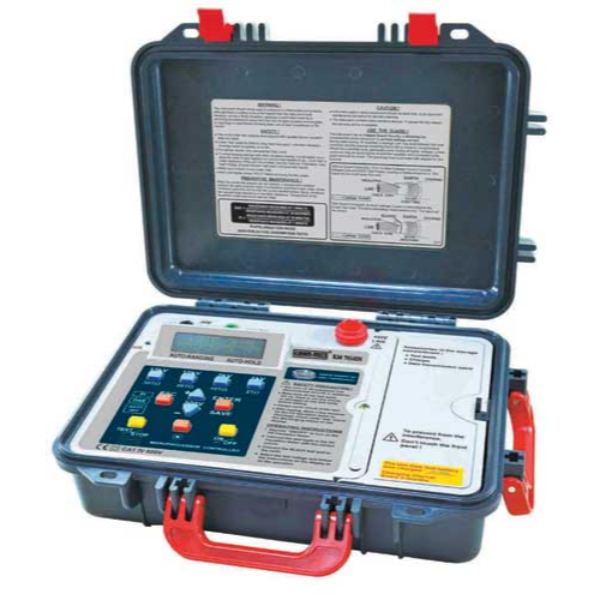

Kusam Meco KM 7016IN - 15 kV Digital High Voltage Insulation Resistance Tester


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Kusam Meco KM 7016IN - 15 kV Digital High Voltage Insulation Resistance Tester

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Microprocessor controlled Menu Driven.
  • Test Insulation Resistance upto 30T Ohms (30000G Ohms)
  • Test Insulation Voltage upto 15kV.
  • Short circuit current upto 5mA.
  • PI and DAR indication.
  • Auto-ranging on all insulation ranges.
  • 2 Lines X 16 Characters large LCD Backlight display.
  • Bargraph indicates test Voltage, rise and decay can be observed.
  • Visual and audible warning if external voltage is present. ( 30Vac or 30Vdc)
  • Auto-hold function to freeze the reading.
  • Overload Protection
  • Adjustment for testing time (duration) :1 ~ 30 minutes
  • Auto-off.
  • Calendar
  • Optical USB to RS-232 data transmission.
Product Specifications

GENERAL

AC voltage:
600 V
Adapter:
Input : 100-240 Vac, 0.4 A, 50-60 Hz, Output : 24 Vdc, 0.62 A
Brand:
Kusam Meco
Country of Origin:
China
Current:
0.5 nA-0.55 mA
DC voltage:
600 V
Dimensions:
430x324x127 mm
Model:
KM 7016IN
PI:
Yes
Power Source:
Rechargeable Battery
Short Circuit Current:
upto 5 mA
Test Insulation Resistance:
upto 30 T Ohms
Test Insulation Voltage:
upto 15 kV
Weight:
6.56 Kg
