Description

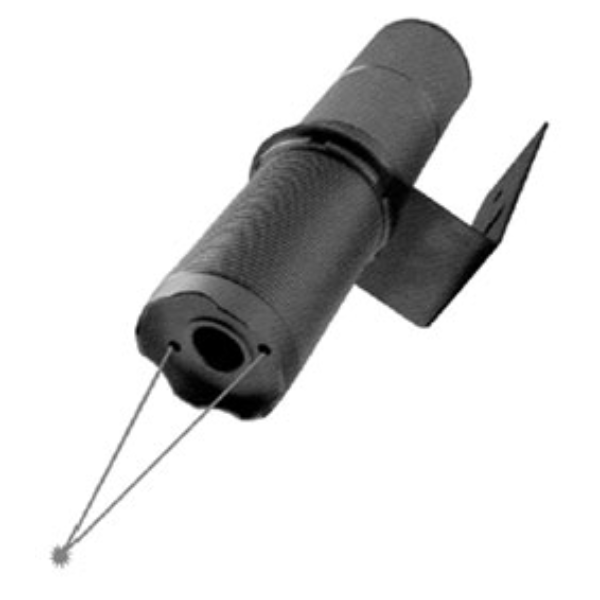

The Kusam Meco - Infrared Temperature Transmitter has sturdy stainless steel and aluminium alloy structure. It measures temperature with infrared radiation. Adequate finishing of the Infrared Temperature Transmitter ensures proper function in harsh climatic conditions. In addition, this Temperature Transmitter has proper insulated digital and analogue outputs to prevent interference during operation.
Product Specifications:
Brand: Kusam Meco
Country of Origin: India
Product: Infrared Temperature Transmitter
Model No.: KM 6816-5/(DT 8018B)
Accuracy: ±2% or 2°C
Distance Spot Ratio: 50
Analog Output: RT-A
Emissivity: 0.95
Power: DC 24V
Operating Temperature: 0-50 °C (32-122 °F)
Protection level: IP65 (NEMA-4)
Repeatability: ±1% or ±1°C
Relative Humidity: 10-95%
Response Time: 500 ms
Spectral Response: 8-14 um
Shell Material: Aluminium alloy or stainless steel
Standard Wire Length: 2 metre
Temperature Range: -50 °C-1800 °C (-58 °F-3272 °F) (KM 6816-5)
Current: 50 mA
Storage Temperature: -20-50 °C (-4-122 °F)
Key Features:
Isolated digital and analogue output.
Protection from electromagnetic disturbance.
Robust structure for durability.

Product Specifications

GENERAL

Accuracy:
 ±2% or 2°C
Analog Output:
 RT-A
Brand:
Kusam Meco
Country of Origin:
India
Distance Spot Ratio:
 50
Emissivity:
 0.95
Isolation:
 Power, digital output and analog output are isolated and do not interfere with each other.
Model Number:
KM 6816-5 (DT 8018B)
Operating temperature:
 0-50 °C (32-122 °F)
Power:
 DC 24V
Protection Level:
 IP65 (NEMA-4)
Relative humidity:
 10-95%
Repeatability:
 ±1% or ±1°C
Response Time:
 500ms
Shell Material:
 Aluminium alloy or stainless steel (optional)
Spectral Response:
 8-14um
Standard Wire Length:
 2M (or can be 5M or 10M or other length you need)
Storage Temperature:
 -20-50 °C (-4-122 °F)
Temperature Range:
-50 °C~1800 °C (-58 °F~3272 °F) (KM 6816-5)
The Maximum Current:
 50mA
