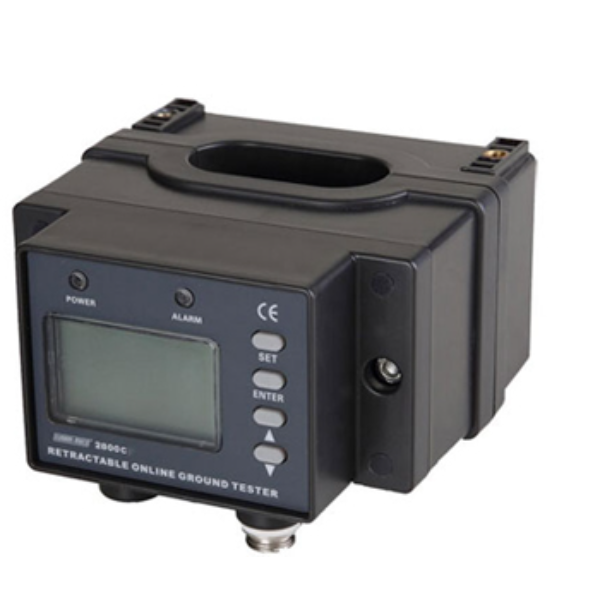

The Kusam Meco - 4 Digit, LCD Display Non-Contact Grounding Resistance Tester is Split Type resistant tester and does not require the grounding down conductor to be disconnected. This 4 Digit LCD Display Non-Contact Grounding Resistance Tester is easy to install and safe and reliable. The LCD Display Non-Contact Grounding Resistance Tester passes directly through the detector perforation to maintain the lighting protection grounding effect and the facility's regular operation. The grounding resistance value can be checked with this Non-Contact Grounding Resistance Tester, and an alarm can also be set based on it. The Rs485 interface in this Grounding Resistance Tester network allows for real-time remote monitoring. The LCD of this Resistance Tester shows fast and precise results every time.
Product Specifications:
Brand: Kusam Meco
Country of Origin: India
Dimensions: 119 x 118 x 76 mm
Model Number: K.M. 2800C
Accessories: Aluminum alloy mounting parts-2pcs Detector, M power communication
Alarm Setting: Detector panel setting, System software settings
Connecting Line: 1m wire (5 core wire)
Accuracy: ± 2% Rdg ± 3dgt (20 °C ± 5 °C, Below 70%RH)
Grounding Wire size: 60 x 28 mm
Installing Screw Hole: Size? 8mm
LCD Display: 47 x 28.5 mm
Overrange Indication: When the show value is beyond 200W, system software and LCD show
Power Supply: 6VDC, 50mA Max External power supply
Resistance Range: Range: 0.01W~20
Time For Single Measurement: About 0.5 second
Waterproof Level: IP56
Key Features:
Quick and accurate monitoring
Easy to install, use and maintain
