Altitude:
Operating below 2000m
Auto Power Off:
Idle for 32 minutes
Dimensions L x W x H:
Approx.193 x 57 x 32 mm
Display:
3-5/6 digits 6000 counts LCD display
E.M.C.:
Meets EN61326-1: 20
Fork-Clamp opening & conductor Diameter:
12.5mm max.
Fork-Clamp probe width:
12mm approx.
Low battery indication:
Below Approx. 2.85V for Capacitance & H

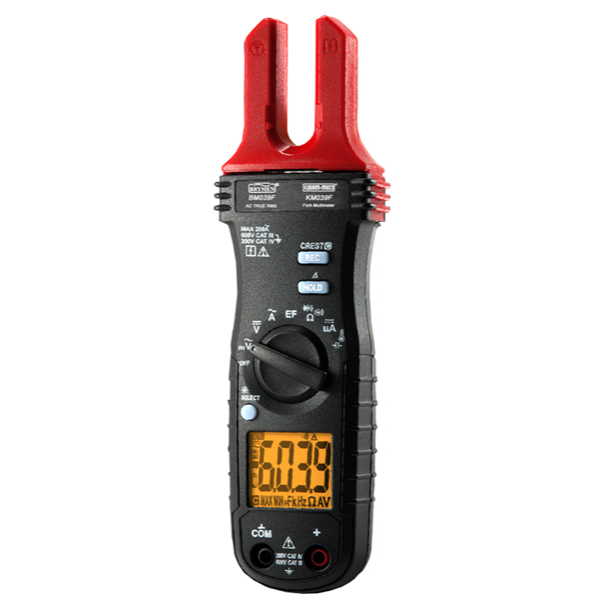

Model Number:
KM 039F];(GENERAL) Basic Accuracy: S[1%
Operating temperature:
0 °C to 40 °C,
Other functions via terminals:
600V DC / VAC rms
Overload Protection:
Current via Fork-Clamp
Power Consumption:
5mA Typical
Power Supply:
1.5V AAA x 2 battery.
Relative humidity:
Maximum relative humidity 80% for temperatu
Storage Temperature:
-20 °C to 60 °C, <80%R.H. (with battery removed).
Temperature Coefficient:
Nominal 0.1 x (specified accuracy) / °C @, (0 °C ~ 18 °C or 28 °C ~ 40 °C), or otherwise specified.
Update Rate:
5/sec nominal
Voltage via terminals:
66V DC / 920V AC rms.
Weight:
Approx. 158gm (including battery)
