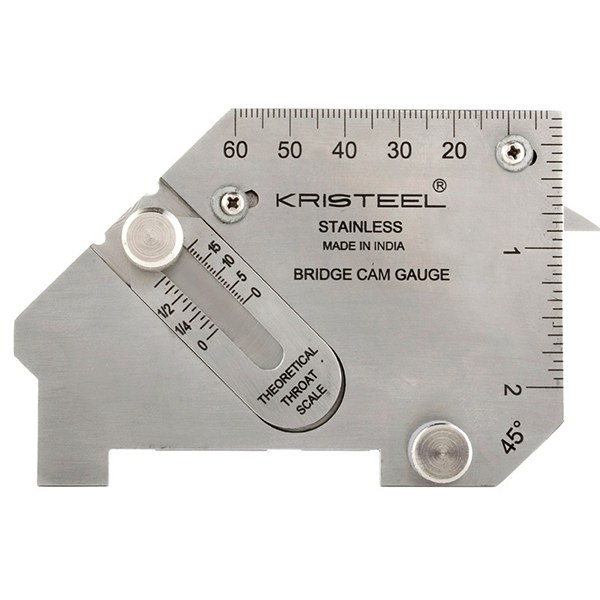

This rugged gauge is fabricated in stainless steel used to measure the important Dimensions of weld preparations & of completed Butt and Fillet welds.It is intended for general fabrication work in the shop or on-site.
It rapidly measures Angle preparation (0° to 60°), Excess weld metal, Fillet weld leg length, Throat length, Misalignment & hole sizes for butt weld, butt-weld reinforcement, General Linear Measurement upto 60mm or 2 inches- Scales are graduated in metric units & supplied in a preventive case with instruction leaflet.
