Buy Kirloskar BIGFLOW 1010A - 1 HP, 100 mm Borewell Water Filled Submersible Pump Online

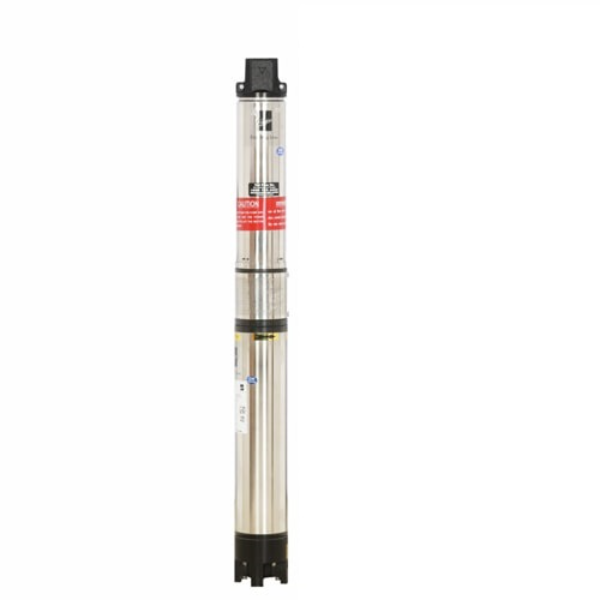

Kirloskar BIGFLOW 1010A - 1 HP, 100 mm Borewell Water Filled Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Kirloskar BIGFLOW 1010A - 1 HP, 100 mm Borewell Water Filled Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

1 HP, 100 mm Borewell Water Filled Submersible Pump is strategically designed with balanced rotating parts. The good quality coating of the Kirloskar - 1 HP, 100 mm Borewell Water Filled Submersible Pump ensures that the product has a long life with minimum maintenance services. The up to date 100 mm Borewell Water Filled Submersible Pump consists of a water-filled cooling system within the motor. The Borewell Water Filled Submersible Pump motor is designed completely with a copper rotor and has a wide voltage range. The Water Filled Submersible Pump is a state-of-the-art product with CED Cathode Electro Deposition Coating. The Submersible Pump can be applied in supplying water to different localities, gardening and irrigation. 1 HP, 100 mm Borewell Water Filled Submersible Pump is a single-phase product with ‘B’ class insulation. The Water Filled Submersible Pump is mostly used for domestic purposes. The Submersible Pump is suitable for 100 mm boring. The NRV in the discharge outlet of Borewell Water Filled Submersible Pump prevents backflow.

Product Specifications:

Brand: Kirloskar

Made In: India

Product: Borewell Water Filled Submersible Pump

Weight: 22 Kg

Diffuser: Noryl

Bore size: 4 inches (100 mm)

Frequency: 50 Hz

Full load current: 8 A

Motor housing: Stainless Steel

Motor bushes: Gunmetal

NRV: cast iron

Outlet Size: 38 mm

Suction: Cast Iron

Thrust bearing: carbon and stainless steel

Discharge range: 105 - 15 LPM

Insulation: B class

Voltage: 180 - 220 V

Power - 0.75 kW

Type of cooling: Water filled

Key features:

Wide voltage range

Water filled cooling

Strong and durable

100% Copper rotor

Long life

Corrosion-free

Does not wear off

Ideal efficiency

Low power usage

Product Specifications

GENERAL

Bore Size:
4 inch (100 mm)
Brand:
Kirloskar
Country of Origin:
India
Customer Care Number:
1800-10-34443
Diffuser:
Noryl
Discharge Range:
105-15 LPM
Frequency:
50 Hz
Full Load Current:
8 A
Head Range:
8-76 metre
Impeller:
Noryl
Insulation:
B Class
Manufacturer Details:
Kirloskar Brothers Limited, Kirloskar Brothers Limited: Udyog Bhavan, Tilak Road, Pune(Maharashtra)- 411002
Model:
BIGFLOW 1010A
Motor Housing:
Stainless Steel
Motor/Pump Bushes:
Gun Metal
NRV:
Cast Iron
Number of Stages:
10
Outlet Size:
38 mm
Packer Details:
Kirloskar Brothers Limited, Kirloskar Brothers Limited: Udyog Bhavan, Tilak Road, Pune(Maharashtra)- 411002
Phase:
Single Phase
Power:
1 HP (0.75 kW)
Protection:
IP 68
Pump Housing:
Stainless Steel
Pump Shaft:
Stainless Steel
Suction:
Cast Iron
Thrust Bearing:
Carbon + Stainless Steel
Type of Cooling:
Water Filled
Voltage:
160 to 240 V
Warranty:
1 Year
