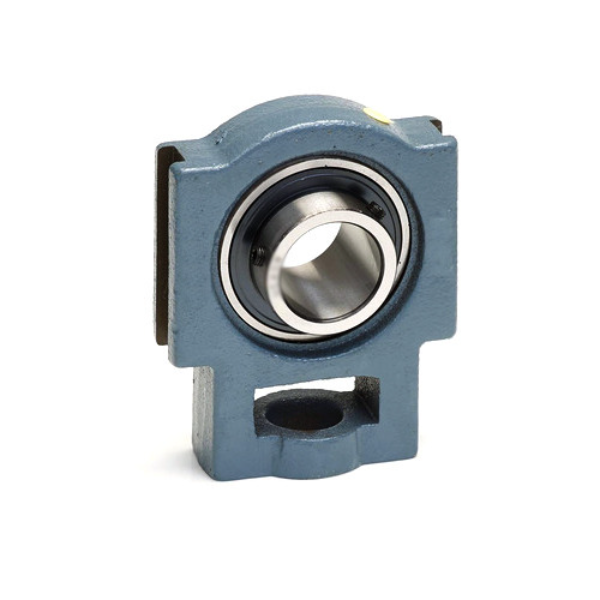

The KHK - 149 mm Bearing Unit has a sturdy structure that compensates for minor damages to the conveyor belt by taking up the adjustable length on the sliding frame. It has deep side grooves for smooth movement of the frame during application. The 149 mm Bearing Unit has a sealed, self-contained bearing compartment with adequate greasing for smooth operation. It prevents the entry of moisture or dust to ensure long service life. In addition, the Bearing Unit has a compact structure for easy handling and convenient installation.
Product Specifications:
Brand: KHK
Model: UCT 209
Country of origin: India
Product: Bearing Unit
Bore Diameter: 50 mm
Housing Material: Cast Iron
Bearing Material: Chromium Steel
Finish: Chrome plated
Series: UCT
Fixed Housing Width: 51.6 mm
Total length: 149 mm
Shaft Axis Distance: 117 mm
Key Features:
Take-up frame adjusts minor damage to the conveyor belt.
Deep groove for convenient application.
Greased bearings facilitate smooth movement.
