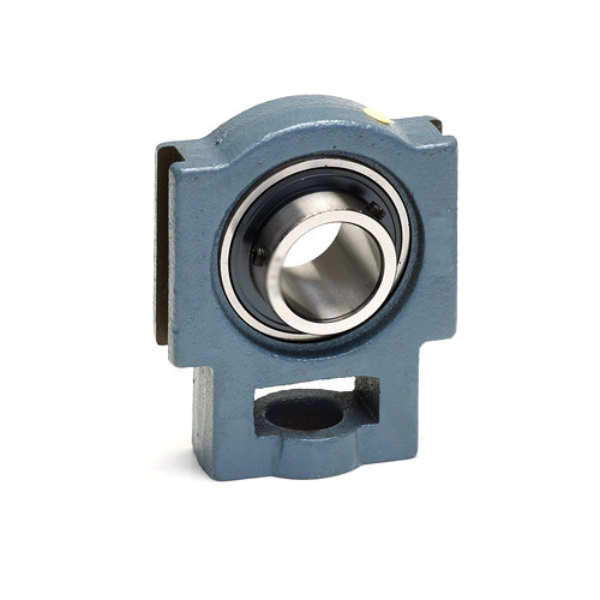

The KHK - 94 mm Bearing Unit has robust cast iron housing with slide grooves on both sides to facilitate free movement. It is suitable for application in areas that require bearing adjustment to the shaft. The 94 mm Bearing Unit has a positioning screw and a guiding frame for accurate assembly. It adjusts the tension of the conveyor belt to prevent slippage or sagging of the belt during heavy-duty operation. This Bearing Unit has tight sealing at the inner ring to prevent grease leakage and entry of environmental contaminants.
Product Specifications:
Brand: KHK
Model: UCT 203
Country of origin: India
Product: Bearing Unit
Bore Diameter: 17 mm
Housing Material: Cast Iron
Bearing Material: Chromium Steel
Finish: Chrome plated
Series: UCT
Fixed Housing Width: 31 mm
Total length: 94 mm
Shaft Axis Distance: 89 mm
Weight: 0.74 Kg
Key Features:
Efficient maintenance and adjustment of tension.
Applicable to industrial conveyor belts.
Adequate lubrication for reduced friction during application.
