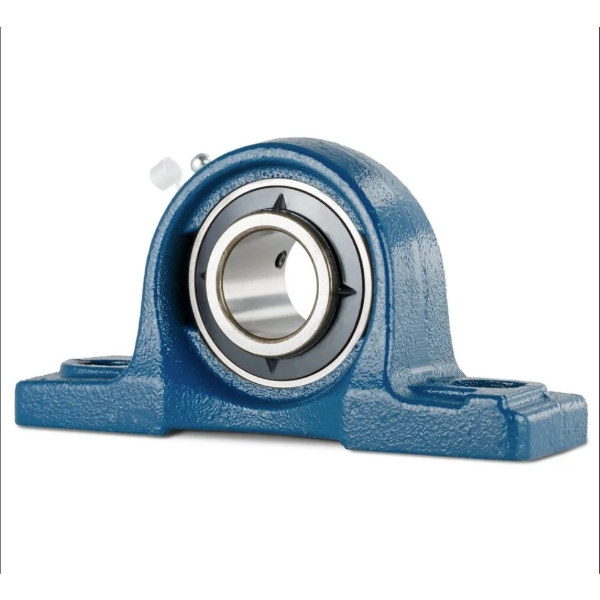

The KHK - 30 mm Pillow Block Bearing has a premium quality cast iron structure resulting in increased durability. It consists of dual-sealed single-row deep groove ball bearings with sufficient lubrication. The 30 mm Pillow Block Bearing offers self-alignment technology with efficiently sized inside and outside diameter rings. The deep groove bearing units withstand radial and substantial thrust loads. The Pillow Block Bearing ensures accurate result delivery in the dirt, extreme temperature, moisture, and other harsh weather conditions. In addition, this Block Bearing has a compact and sturdy base for maintaining structural integrity during mounting.
Product Specifications:
Brand: KHK
Model: UCP 206
Country of origin: India
Product: Pillow Block Bearing
Bore Diameter: 30 mm
Total length: 165 mm
Series: UCP series
Shaft axis distance: 42.9 mm
Weight: 0.79 Kg
Width: 38.1 mm
Key Features:
Rotational self-alignment.
Increased service life.
Greater load-carrying capacity.
Easy locking shaft.
Sufficient lubrication for smooth operation.
