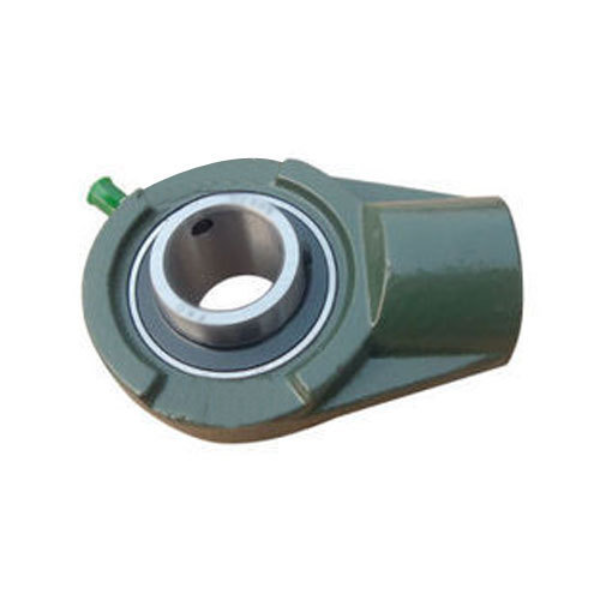

Manufacturers have subjected the KHK - 96 mm Bearing Unit to impacts and vibration under heavy loads. In addition, the 96 mm Bearing Unit has a safety arrangement. Thus, users can operate the Bearing Unit without getting exposed to shocks. Made through a unique casting technique, the KHK - 96 mm Bearing Unit has a user-friendly appearance and comes with a heat-resistant coating. As a result, the Bearing Unit can work for hours without getting deformed from high heat. This 96 mm Bearing Unit is suitable for packing machines, bobbin winding machines, and film-take up engines.
Product Specifications:
Brand: KHK
Product: Bearing Unit
Model: UCHA 207
Country of Origin: India
Outer Diameter: 96 mm
Sealing Width: 49.2 mm
Shaft Axis Distance: 73 mm
Bore Diameter: 40 mm
Dimensions: 165x42x82 mm
Weight: 1.5 kg
Key Features:
Nitrile rubber seal
Martensitic stainless steel raceways
Solid greasing
Does not cause environmental contamination
High load-bearing capacity
