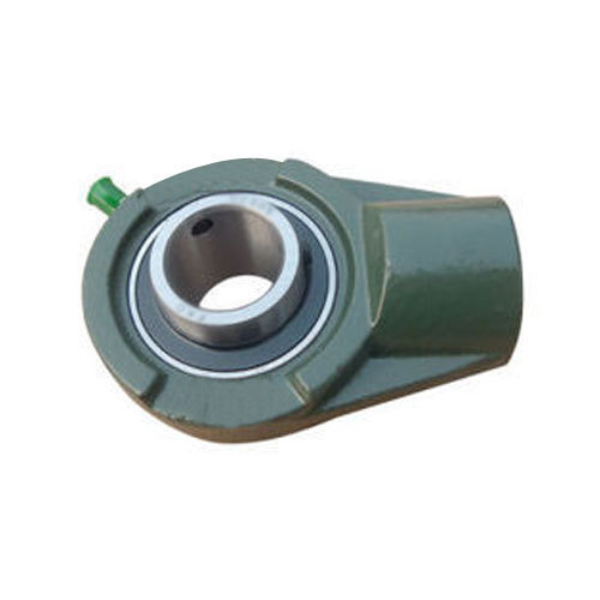

The KHK - 92 mm Bearing Unit has a spherical exterior surface bearing, and the housing with a spherical bearing seat act as a self-aligning mechanism for the bearings. In this 92 mm Bearing Unit, the deviation of the shaft centre caused by shaft warp or offset gets automatically adjusted to avoid abnormal load on the bearing, resulting in the bearing's loner validity. The bearing and housing fit together and align perfectly because the Bearing Unit's spherical outer surface is ground. The housing's spherical bearing seat is precisely machined on a boring machine. The KHK - 92 mm Bearing Unit comes in a pack of two.
Product Specifications:
Bore Diameter: 35 mm
Brand Name: KHK
Country of Origin: India
Model No: UCHA 206
Outer Diameter: 92 mm
Sealing Width: 42.9 mm
Shaft Axis Distance: 70 mm
Quantity: 2 Per Pack
Key Features:
Self-aligning property
Ideal for various industrial operations
Less prone to corrosion and damage
Extended service life
