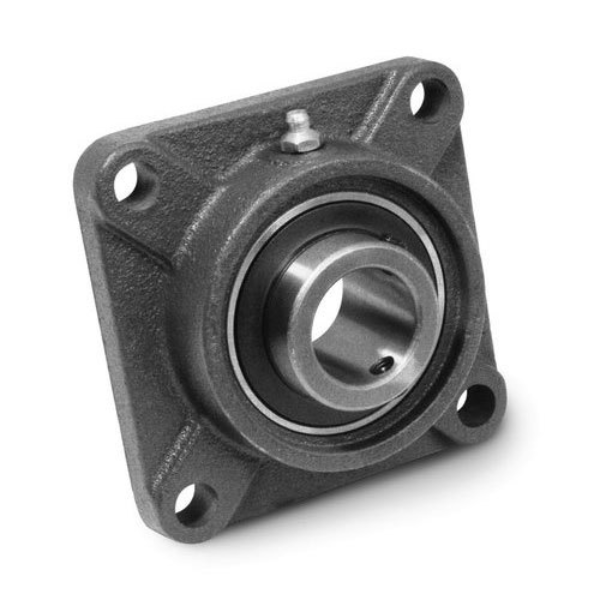

The KHK - 103 mm Bearing Units have' two main components, the insert and the housing. A sealed single-row ball bearing with a spherical outer diameter and an expanded inner ring is housed in a KHK - 103 mm Bearing Units housing. Because of the spherical fit, an initial misalignment is permissible. Close-fitting shafts can be mounted using various locking methods and sealing options for various conditions in these Bearing Units. These units feature a one-piece cast iron housing with a solid base and grease fittings for lubrication, twin heavy-duty contact-type seals, and large inner ring bearings for dust exclusion.
Product Specifications:
Brand Name: KHK
Country of Origin: India
Fixed Housing Width: 18 mm
Bore Diameter: 30 mm
Model No: UCF 206F
Mounting Hole Distance: 83 mm
Total width: 103 mm
Quantity: 2 Per Pack
Key Features:
Self-aligning properties
Dust, water and corrosion resistant
Comes with a set screw locking feature
Strong and long-lasting
