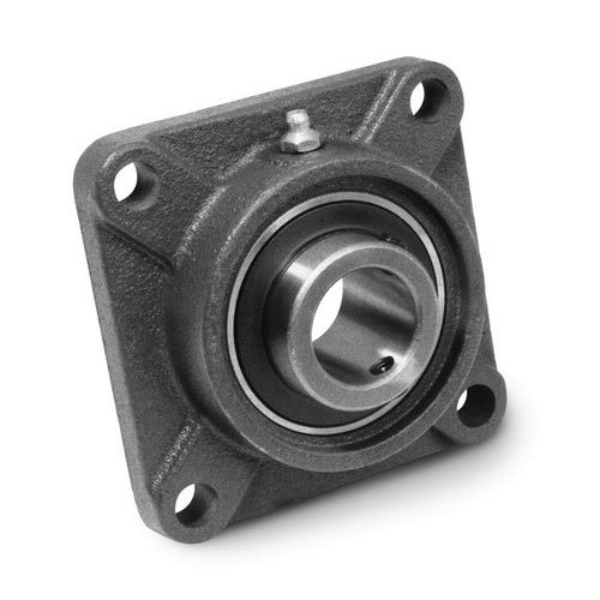

The KHK - 103 mm Bearing Unit has an adequately sealed bearing unit inserted in the cast iron housing. It is sufficiently lubricated to offer smooth and noise-free operation at high-speed. The 103 mm Bearing Unit has a double heavy-duty rubber and steel plate seal for dust exclusion. The flat housing surface tightly attaches to the working space without leaving any gap to reduce any chances of structural deformation or breakage. The Bearing Unit has a single-row deep groove with self-aligned spherical bearings.
Product Specifications:
Brand: KHK
Model: UCF 206
Country of origin: India
Product: Bearing Unit
Bore Diameter: 30 mm
Housing Material: Cast Iron
Bearing Material: Chromium Steel
Finish: Chrome plated
Series: UCF
Fixed Housing Width: 18 mm
Mounting Hole Distance: 83 mm
Width: 103 mm
Key Features:
Sturdy square flange housing.
Four-bolt fixing for stability during high-speed operation.
Pre-lubricated bearing unit for instant application.
Reduced noise and vibration during operation.
