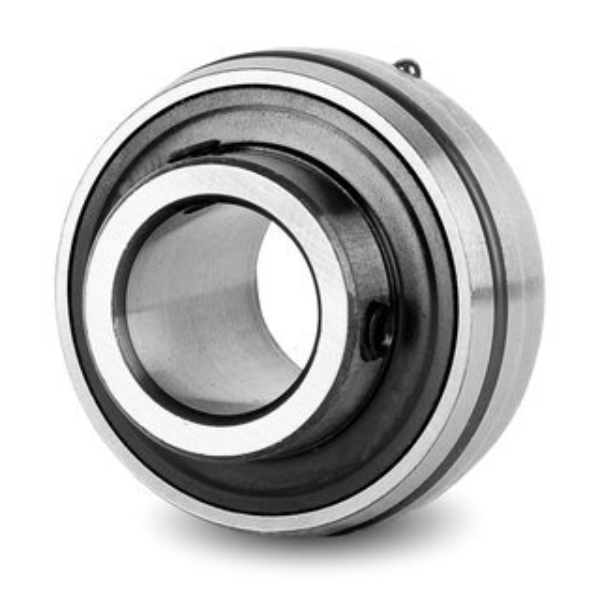

The KHK - 120 mm Triple Seal Bearing Unit has a strong seal of the steel plate and synthetic rubber at the inner ring for dirt and moisture exclusion. It consists of a unique heat-treated steel structure for long service life. The 120 mm Triple Seal Bearing Unit has two set screws at the inner ring to prevent the free movement of the outer ring. The robust spherical bearings of the Triple Seal Bearing Unit efficiently carry heavy loads during operation without enduring any wear. In addition, this Bearing Unit has a pre-lubricated deep groove raceway for easy assembly to the housing.
Product Specifications:
Brand: KHK
Model: UC 212F
Country of origin: India
Product: Bearing Unit
Bore Diameter: 65 mm
Bearing Material: Chromium Steel
Finish: Chrome plated
Series: UC
Outer Diameter: 120 mm
Ring Width: 28 mm
Width: 65.1 mm
Key Features:
It has pre-lubricated spherical bearings for proper alignment.
It has a smooth outer surface for the exact mounting process.
It bears appropriate sealing to prevent leakage.
Hardened structure to carry a heavy load.
