Karam PN 7000 - Vertical Anchorage Line System on Rigid Cable Line


Available on Request
Quantity
Minimum Order Quantity: 10 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Karam PN 7000 - Vertical Anchorage Line System on Rigid Cable Line

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 8-9 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Conforming to the Norm EN 353-1:2012 this vertical Fall Arrest system is an integrated solution to arrest the fall of a user who has to constantly climb up and down a ladder.

The Unique Feature of this system is a permanent installed Stainless Steel Shock Absorber at the top of the line which offers distinct advantage over the textile absorber used in other lines in term of UV degradation and resistance to harsh climate Conditions. Also the Shock Absorber is constructed of unique design that helps in easy installation of the system.

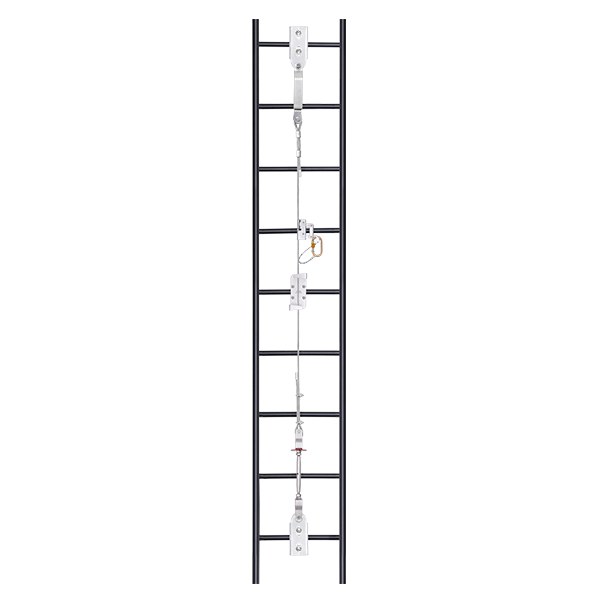

The Vertical Anchorage Line is made of Stainless Steel wire rope and is maintained in the rigid position by the use of 2 mounting brackets: one at the top and one at the bottom.

The Stainless-steel Rope Grab is directly connected to the user without any additional lanyard.

To maintain the rigidity and high tension in the anchorage line, a screw type mechanical tensioner is provided at the end of the anchorage line at the bottom, connecting it to the lower mounting bracket. The Tensioner is provided with a unique tension indicator which helps ensure appropriate tension is attained, and maintained in the line.

The system also has an Inspection Name Plate which is installed on the first rung of the ladder for identification, traceability and maintenance of inspection records.

Componets in PN 7000:

  • Mounting Bracket: PN 7000(01) - Material: Stainless steel 316, 2 pieces, Breaking Strength > 23kN, Complies with EN 795 Type A.
  • Shock Absorber: PN 7000(02) - Material: Stainless steel 316, 1 piece, Limits the impact of force in the event to fall to less than 6kN
  • Wire rope (with one end having a swaged loop) - PN 9XXXSL (Where XXX is the length of the wire rope in meters) - Material: Stainless steel 316, Diameter: 8mm, Construction: 7x19.
  • Rope Grab: RG-02 112 - 1 piece, Material: Stainless steel 316 Anti inversion mechanism.
  • Intermediate: PN 2001 (04) - Material: Stainless steel 316 recommended Installation- 1 No. at every 10 m.
  • Wire Rope Cap: PN 7000 (12): 2 pieces, Material: Aluminium Alloy.
  • Set of U-Bolts and Thimbles: PN 6000 (01), 1 set, U-Bolts: Qty:2 nos, Thimbles: Qty: 1 nos, Material: Stainless Steel 316. Quantity: 1 Set.
  • Tensioner: PN 7000 (05): 1 piece, Regulates tensioning of the cable. Equipped with a Tension Indicator, Material: Stainless steel 316.
Product Specifications

GENERAL

Area of Application:
Industrial ladders, Chimney ladders, Telecommunication towers, Power transmission towers, Windmill
Brand:
Karam
Country of Origin:
India
IS Specification:
EN 353-1:2012
Material Type:
Stainless Steel
Model:
PN 7000
Product:
Vertical Anchorage Line System on Rigid Cable Line
