Karam PN 4000 - Horizontal Anchorage Line System on Rigid Cable Line (Over The Head)


Available on Request
Quantity
Minimum Order Quantity: 10 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Karam PN 4000 - Horizontal Anchorage Line System on Rigid Cable Line (Over The Head)

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

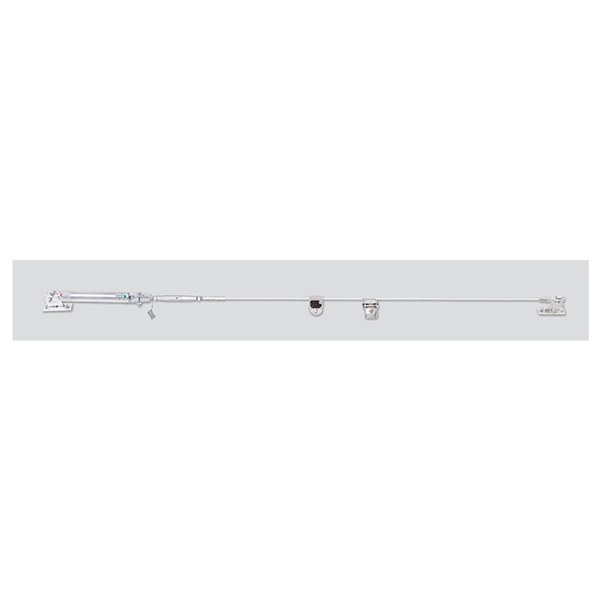

Horizon PN 4000 provides permanent anchorage to a user who has to constantly move along a horizontal track. It comprises of a Stainless Steel Wire Rope grade 316 of 8 mm diameter running all along the horizontal track. It is installed at the ends using special Universal Extremity Plates. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at intervals of 10m to 15 mtrs. The line is maintained in tension with the help of Tensioner at one end, while the other end has a swage less termination on to the Universal Extremity plate.

The Stainless Steel Carriage Shuttle connects the user to the line with the help of a lanyard/ retractable block, and moves smoothly without interruption along the entire length of the Horizontal line and also through the Intermediate Brackets, ensuring 100% anchorage of the user at all times.

The line also has a Shock Absorber at one end which reduces the impact of fall both on the user as well as on the extremities.

The system also has an Inspection Name Plate which is installed on the first rung of the ladder for identification, traceability and maintenance of inspection records. Two stainless steel cable ties are used to fasten the System Name Plate to the structure. At time of installation, the relevant details are punched on the plate by a number punch. The revalidation dates are punched each year on the plates after inspection and revalidation.

Product Specifications

GENERAL

Area of Application:
Truck loading/ unloading, Advertisement Bill Boards, Industrial cranes, Oversized machines, Reactors, Turbines
Brand:
Karam
Country of Origin:
India
IS Specification:
EN 13463-1: 2009, and EN 13463-5: 2003
Material Type:
Stainless Steel Grade 316
Model:
PN 4000
Product:
Horizontal Anchorage Line System on Rigid Cable Line (Over The Head)
