Buy JSPL ISMC 400 - 50.1 Kg Steel Channel Online

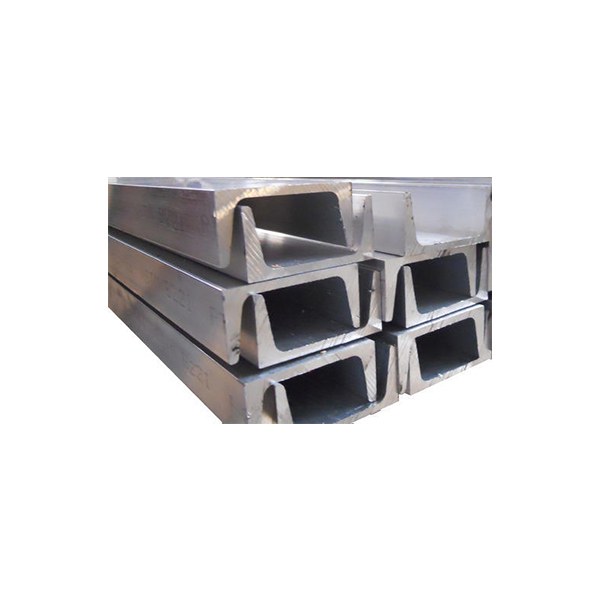

JSPL ISMC 400 - 50.1 Kg Steel Channel


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 MT
OR
Reach Us At +91-9243011081

JSPL ISMC 400 - 50.1 Kg Steel Channel

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

JSPL has pioneered the production of medium and heavy hot rolled parallel flange beams and column sections in India. These sections are cost-effective through savings in steel consumption and provide ultimate design flexibility to the structural designers. The company has collaborated with JFE Engineering Corporation, Japan (formerly known as NKK Corporation), to introduce this innovative product in India. It leads technical innovation and advancement by offering H-beams that are unmatched in quality, performance and cost effectiveness.

Manufactured through the universal rolling method, these beams have standard nominal depth, with different flange and web thicknesses. This helps customers to choose from variety of options in terms of unit weights and sectional properties. In fact, JSPL's beams are the most sought after by structural engineers, architects and construction companies globally.

Steel channel is a hot?rolled carbon steel constructed using a vertical web and flanges, it is available in a wide range of sizes and thicknesses. The channel is known to provide good stability while the flat surface is ideal for providing support.

Features of Channel

  • Superior mechanical properties
  • Reliable
  • Cost?effective
Product Specifications

GENERAL

Area of Application:
Framing for floor penetrations, Towers and poles, Trackers and sliders for doorways and machines, Ceiling channel system, Protecting wall edges
Brand:
JSPL
Channel Section Type:
C Type
Depth:
400 mm
Flange Thickness:
15.3 mm
Flange Width:
100 mm
IS Specification:
As per IS: 808
Material:
Hot Rolled Carbon Steel
Product:
Steel Channel
Web Thickness:
8.8 mm
Weight:
50.1 Kg/m
