JSPL - ISMC 200x75 mm Hot Rolled Steel Channel


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 MT
OR
Reach Us At +91-9243011081

JSPL - ISMC 200x75 mm Hot Rolled Steel Channel

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

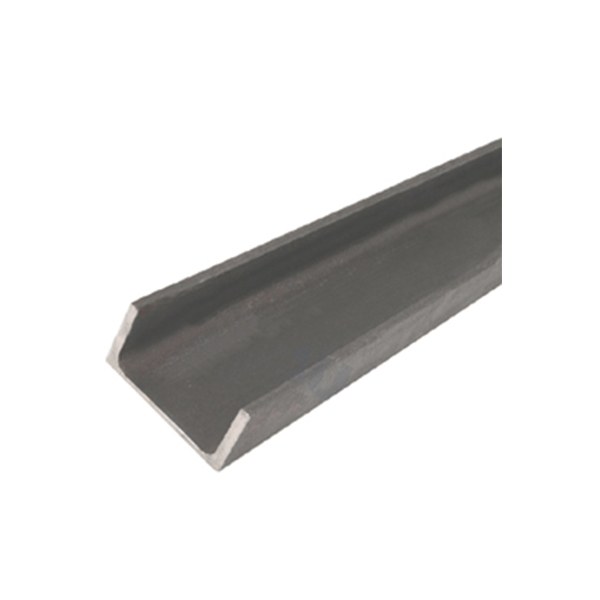

Steel channel is a hot rolled carbon steel constructed using a vertical web and flanges, it is available in a wide range of sizes and thicknesses. The channel is known to provide good stability while the flat surface is ideal for providing support.

Key Features of Channel

  • Superior mechanical properties
  • Reliable
  • Cost?effective
Product Specifications

GENERAL

Area of Application:
Framing for floor penetrations, Towers and poles, Trackers and sliders for doorways and machines, Ceiling channel system, Protecting wall edges
Brand:
JSPL
Depth:
200 mm
Flange Slope:
96 degrees
Flange Thickness:
11.40 mm
Flange Width:
75 mm
IS Specification:
As per IS 808 & tolerance as per IS 1852
Material:
Hot Rolled Carbon Steel
Product:
Steel Channel
Root Radius:
11.00 mm
Weight:
22.30 Kg/m
