Buy JSPL - 254mmx146mmx37 Kg UB Series Parallel Flange Beam Online

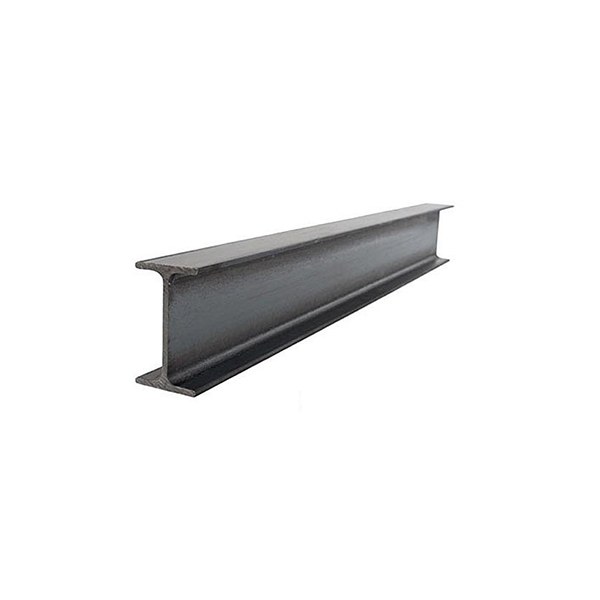

JSPL - 254mmx146mmx37 Kg UB Series Parallel Flange Beam


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 MT
OR
Reach Us At +91-9243011081

JSPL - 254mmx146mmx37 Kg UB Series Parallel Flange Beam

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

JSPL has pioneered the production of medium and heavy hot rolled parallel flange beams and column sections in India. These sections are cost-effective through savings in steel consumption and provide ultimate design flexibility to the structural designers.The company has collaborated with JFE Engineering Corporation, Japan (formerly known as NKK Corporation), to introduce this innovative product in India. It leads technical innovation and advancement by offering H-beams that are unmatched in quality, performance and cost effectiveness.

Produced as per various Indian & international standards, these sections are superior in terms of strength, efficiency, higher axial and bending load bearing capacities, workability and economy vis-vis conventional tapered flange beams. These parallel flange beams and columns enable complex fabrications in high volumes due to inherent functional advantages. When used under bending load, steel savings of up to 10-25% are achieved, as beams of lower sectional weight can be used.

The company today rolls 32 different sections and over 110 different variants (unit-weights) of structural steel including beams columns, channels and angles conforming to Indian and international BS / UB / UC / NPB / WPB / IPE / HE series.

Key Features

Economy

Steel savings with the structures under bending as well as axial load conditions are appreciable due to high load bearing capacity under different load conditions (substantiated by study done by INSDAG).

Excellent Durability

The use of clean steel which is free from harmful impurities, inclusions on account of in-house and virgin raw material combined with the state-of-the-art steel refining facilities lends excellent durability.

Superior Weldability

As a result of its chemical composition of pure steel and lower carbon equivalent, the structures offer superior weldability.

Product Range

Wide product range is available lending more flexibility to designers and a more cost-effective option to project owners.

Product Specifications

GENERAL

Area of Application:
H-Beams are used in factory platforms, bridges, steel buildings, and frames for truck beds, I?beams may be used both as beams and as columns. They are used for commercial and residential construction, lifts, mezzanines, platforms etc
Beam Section Type:
I/H Type
Beam Series:
UB Series
Brand:
JSPL
Depth:
256 mm
Flange Thickness:
10.9 mm
Flange Width:
146.4 mm
IS Specification:
As per BS4-1:1993
Material:
Hot Rolled Carbon Steel
Product:
Steel Beam
Root Radius:
7.6 mm
Web Thickness:
6.3 mm
Weight:
37.0 Kg/m
