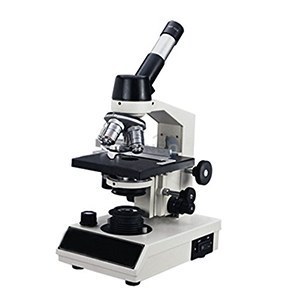

Jainco 5302 - Digital Monocular Doctor Pathological Microscope


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Jainco 5302 - Digital Monocular Doctor Pathological Microscope

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Microscope Specifications Observation head Monocular observation head inclined at 45°, rotate able through 360 degree. Main body all parts die casted to provide long life & good mechanical strength. Focusing Precise and Separate coarse and fine focusing controls with ergonomically placed knobs on both sides. Magnification Configurations: 40X, 60X, 100X, 150X, 400X, 600X, 1000X, 1500X Eyepiece Wide field 10x, 15x pairs Objectives Din objectives 4x, 10x, 40/45x s. L. 100x oil immersion (s. L.). Nosepiece Quadruple nosepiece revolves on ball bearing. Mechanical stage Co-axial low positioned mechanical x-y stage of size 120 x 125 mm with stage fine vernier graduation. Condenser Abbe condenser n. A. 1. 25 having a spherical lens, adjustable iris diaphragm. Illumination In built white bright LED Illumination with SMPS based power supply 100-220V. USB CMOS MICROSCOPE CAMERA:- • 5.0 megapixels with progressive scanning CMOS image sensor. • No compression, no interpolation. • Support still image capture (JPG, BMP) • Standard C-Mount makes connection to any microscope easy. Macro lens setups are also supported • Resolution: 2592X1944(8bit); 480 Mibt/Sec, DC5V±5% • Pixel size: 2.2mmX2.2mm. • Frame Rate .8fps@2592X1944 30 fps@640 ×480 Auto White Balance. • Shutter Electronic10μs-32ms, Auto exposure • Operating Temp: 0°C ~ 60°C.

Product Specifications

GENERAL

Brand:
Jainco
Magnification:
40x to 1500x
Manufacturer Details:
Jain Scientific Suppliers , 2475-84, Hargolal Road,Ambala Cantt, Haryana, India
Model:
5302
Objectivess:
4x, 10x, 40/45x s.L, 100x OIl immersion
Packer Details:
Jain Scientific Suppliers , 2475-84, Hargolal Road,Ambala Cantt, Haryana, India
Warranty:
3 Months
Weight:
7 Kg
