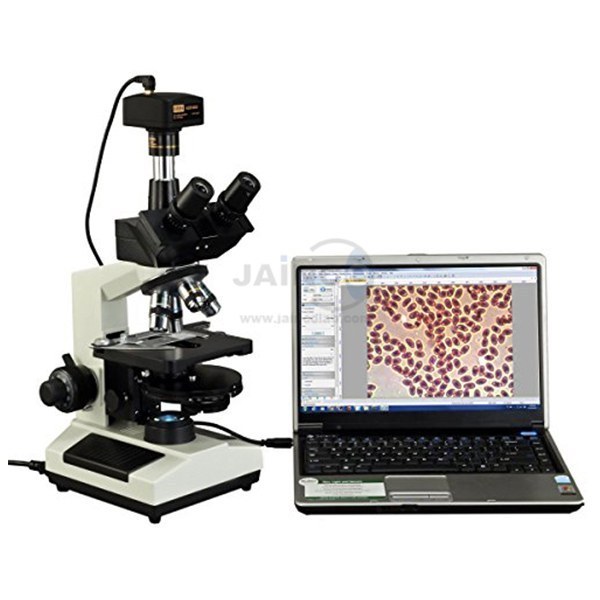

Microscope Specifications Observation head Trinocular observation head inclined at 45°, rotate able through 360°, interpupilary distance adjustment ring 55-75 mm, dioptric adjustment ring on the left ocular having adjustable dioptric scale with trinocular tube for photo micro graphic/camera attachments. Anti-Fungal Treated Observation Head. Main body All parts die casted to provide long life & good mechanical strength. Ergonomically Shaped and Corrosion Resistant, Anti Mould Treated. Focusing Precise and Separate coarse and fine focusing controls with ergonomically placed knobs on both directions. Friction/Hardness of Coaxial Knobs can be adjusted, Coarse Range: 24 mm and Fine Precision Scale: 0.004 mm. Magnification Configurations 40X, 60X, 100X, 150X, 400X, 600X, 1000X, 1500X Eyepiece High Eyepoint, WideField, Anti Fungus Treated Wide Field Eyepieces: WF10X (Field of Line: 18 mm) Pair, WF15X Pair. Objectives CLARITY series DIN SEMI PLAN ACHROMATIC Objectives: 4X, 10X, 40X(S), 100X(O,S) Nosepiece Low Friction & Fully Parafocal Reverse (Backward) Quadruple Revolving Nosepiece Mechanical stage Co-axial low positioned mechanical x-y stage of size 120 x 125 mm with stage fine vernier graduation Condenser Abbe condenser n. A. 1. 25 having a spherical lens, adjustable iris diaphragm. Illumination Built in Super Bright LED Lamp, Variable Intensity Control with SMPS Based broad range 100V-220V Power Supply. Provided with Standard Indian Plug. MICROSCOPE CAMERA WITH MEASUREMENT SOFTWARE 5.0 Megapixel HARDWARE CONFIGURATION Image Pickup Device Aptina MT9P001 CMOS(Color) Scan Mode Progressive Max. Resolution 2592 x 1944 (Approx.5,040,000 Pixels) Sensor Size (Diagonal) 1/2.5" (5.70 mm(H) x 4.28 mm(V), Diagonal 7.13 mm).
