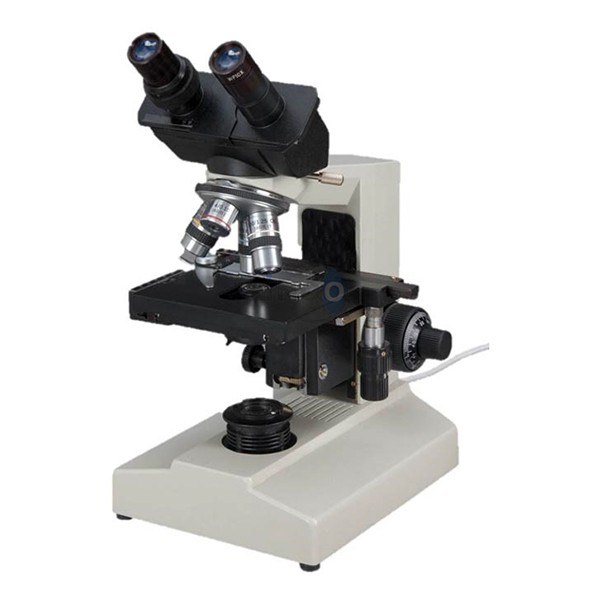

Observation head-Binocular observation head inclined at 45 degree, rotatable through 360 degree, interpupilary distance adjustment ring 54-74mm, dioptric adjustment ring on the left having adjustable dioptric scale.
Main body-All part die cast to provide long life & good mechanical strength.
Coaxial focusing control with ball bearing guide way & large knobs. Pre focusing/ auto focusing lock & tension adjustment ring.
Eyepiece-High eye point wide field 10x, (f. N. 20) or 15x paired.
Objectives-Din objectives 4x, 10x, 40/45x s. L. 100x oil immersion (s. L. ).
Nosepiece-Quadruple nosepiece revolves on ball bearing.
Mechanical stage-Co-axial low positioned large size double plate type x-y mechanical stage of size 142140mm with fine vernier graduation.
Condenser-Abbe condenser n. A. 1. 25 having aspherical lens, adjustable iris diaphragm. Abbe condenser n. A. 1. 25 having aspherical lens, adjustable iris diaphragm.
Illumination-Built in illumination system with 6v-20w halogen bulb & plano concave mirror attachment suitable for 220v,50hz ac supply
