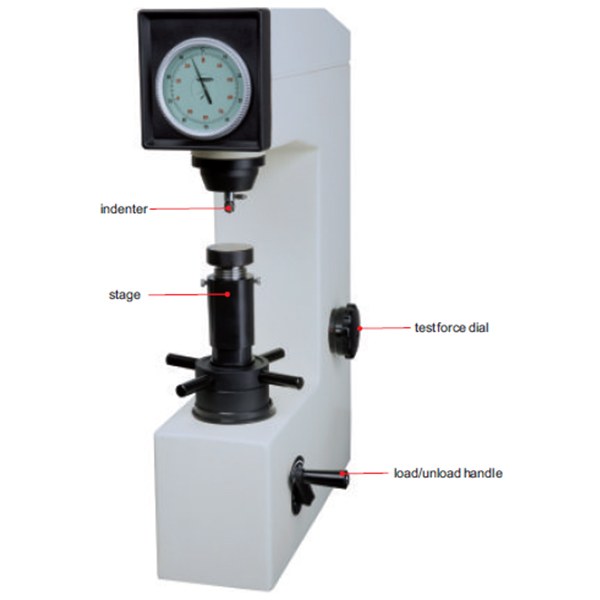

Insize - 520x160x700 mm Manual Rockwell Hardness Tester is a mechanical device used to predict the hardness of the sample placed by rotating a pressure-selecting hand-wheel. Operations of the 520x160x700 mm Manual Rockwell Hardness Tester is comparatively easy, and these are used across various industries, which requires testing of materials. The Manual Rockwell Hardness Tester works best under the ambient temperature of 10-30 degrees Celsius, and it is advised to keep free from a vibratory environment. The 60 kg weighing Hardness Tester has a maximum workplace height of 170 mm and a maximum workplace depth of 165 mm. The preliminary test force is 98N, and the display of the Hardness Tester is analogue. Therefore, the stage elevation and the load control of the tester should be handled manually. A buffering device is used in this tester to control the pressure applied by the user. Moreover, the pressure selecting the hand-wheel helps in changing the amount of pressure.
Product Specifications:
Brand: Insize
Country of Origin: China/Taiwan
Product: Manual Rockwell Hardness Tester
Dimension: 520x160x700 mm
Max. Workpiece Depth: 165 mm
Max. workpiece height: 170 mm
Min. Reading: 0.5 HR
Product No: ISH - R150
Weight: 60 Kg
Load Dwell Time: 1 - 99 seconds
Key Features:
Fast results
Relatively non-destructive to the material
No need for a highly skilled operator.
